ZB4BZ009, Schneider Electric Collar, For Use With XB4 Series

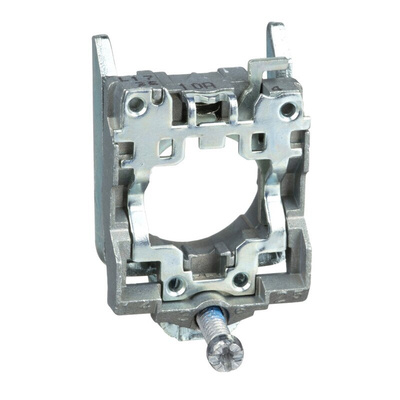

Schneider Metal Fixing Collar Pillar - ZB4BZ009

Created and designed for printed circuit boards, Schneider's metal fixing collar offers users a solution for mounting and fixing accessories. Forming part of the Harmony XB4 range, this fixing collar must be used in conjunction with adaptor ZBZ010.

Features & Benefits

• The collar weighs 0.003 g


• The mounting hole size of 22 mm


• It is a green premium product


• Designed to be used with the Harmony XB4 series of push-button switches


• Comprised of a strong metal material enabling the component to hard-wearing and long-lasting


• Standard head type


• Mercury and toxic heavy metal free


• Contributes to a simple and secure setup


• Metallic grey in colour offering an aesthetically pleasing industrial finish

Schneider Electric Protective Collar, Metal Material, 6g Weight - Harmony XB4 Series - ZB4BZ009

Give your push button switch the backing it needs with this protective collar from Schneider Electric. It gives you a simple way to install your component onto a board. The unit also helps to secure the switch in place to reduce the risk of accidental disconnections and minimise downtime. A cutout diameter of 22mm makes it a sure fit for many standard push button installations. Thanks to its metal construction, the collar resists impact and wear, so you can rely on it to roll with the punches in demanding environments.

Features & Benefits

• Light weight of 6g puts minimal strain on your equipment
• Pre-drilled holes save time and effort during installation

Applications

• Consumer electronics
• Commercial and domestic appliances
• Industrial control panels
• Medical devices

What push buttons can I use this protective collar with?

For ease of assembly, this protective collar is designed for use with push buttons in the Harmony XB4 series.

How do I mount this protective collar onto a PCB?

Attach the collar to an adapter (815-1709), then plug the assembly into your board.

UL E164353
