ZB4BZ101, Schneider Electric Harmony XB4 Series Contact Block, 600V, SPST, Контактный блок

Schneider Electric Contact Block, 1NO, 600V - Harmony XB4 Series - ZB4BZ101

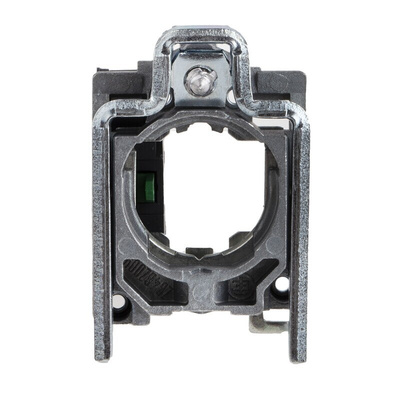

This contact block from Schneider Electric's Harmony XB4 range is the ideal choice for pushbutton power control. It has one normally open (1NO) contact that provides a flow of current when the button is pressed and returns to its OFF state when it's not. This makes it well-suited to manual machine control. The unit comes complete with its own fixing collar made of durable Zamak (a zinc, aluminium, magnesium and copper alloy) material, so it won't deform in the event of impact. You'll find devices like this one commonly used in factories and laboratories.

Features & Benefits

• 10A cartridge fuse safely breaks the current flow in the event of a power surge
• 600V rated insulation voltage for heavy-duty applications
• Slow-break contact operation for a secure connection
• IP20 (ingress protection) rating indicates it can withstand dust and particles larger than 12mm in size

Applications

• Human-machine interfaces (HMIs)
• Medical equipment
• Pilot-light heads

How do I install this component?

This component comes equipped with a fixing collar to make installation easy. Simply screw it onto the panel with a screwdriver and link the power cables to the terminal points.

Approvals

UL; CSA

UL E164353
