ZB4BZ103, Schneider Electric Harmony XB4 Series Contact Block, 600V, SPDT, Контактный блок

Schneider Electric Contact Body, 2NO, 600V - Harmony XB4 Series - ZB4BZ103

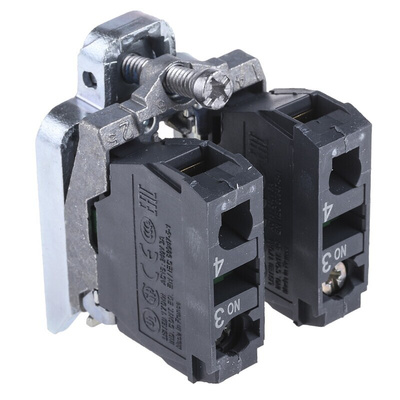

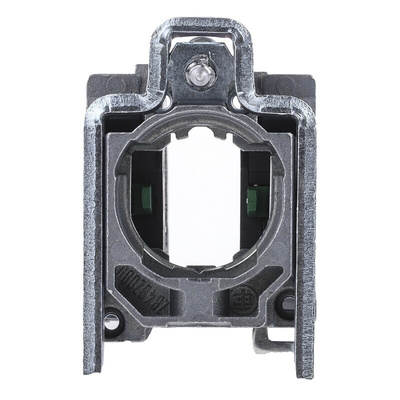

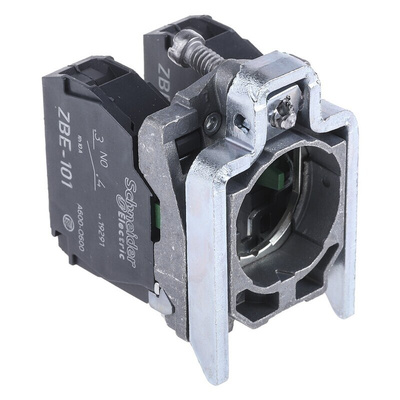

Quickly and safely fit a pilot light to your panel with this contact block from Schneider Electric. The modular component is easy to configure with your choice of button and legend holder. It comes with a complete body and a fixing collar, so it's already assembled for mounting your pilot light. The plug-in fittings mean installation and replacement of components is simple and maintenance downtime is minimised. A long mechanical lifespan of 5,000,000 cycles makes this a durable and sustainable option for your panel.

Features & Benefits

• Fixing collar made from Zamak (a robust zinc alloy) for high corrosion resistance
• Wide operating temperature range between -40°C and +70°C for use in demanding environments
• Screw clamp terminals for flexible wiring and secure connections
• A low weight of 62g makes it suitable for installation on walls and machine panels

Applications

• Process automation
• Electrical engineering
• Chemical industry
• Food and beverage industry

Does this contact block have any short-circuit protection?

Yes, it comes with a 10A cartridge fuse to help protect your electrical circuits and equipment.

How much space does this contact body take up?

This contact component takes up very little space and measures just 47mm in height, 30mm in width and 37mm in depth.

Approvals

UL; CSA

UL E164353

Single Contact Block ZB4BZ103 Data Sheet

Datasheet

Instruction Sheet - ZB4 / ZB5

Catalogue - Harmony XB4 metal

Product Environmental Profile
