ZB4BZ105, Schneider Electric Harmony XB4 Series Contact Block, 1 NO + 1 NC, Контактный блок

Schneider Electric Contact Body, NO/NC, 10 A - Harmony XB4 Series - ZB4BZ105

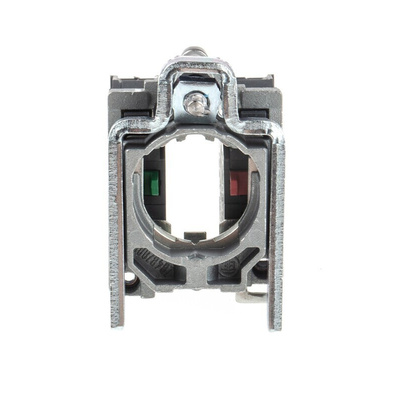

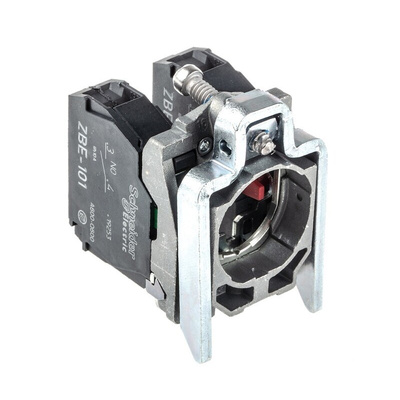

This contact body from Schneider Electric is a simple way to add a light or push button to your control panel. It comes with a contact block and fixing collar and uses push-fit and universal screw connectors for easy installation. Using this innovative, modular design gives you a flexible method of attaching and replacing lights, legend holders and protective boots. The body is a compact choice, measuring 47mm in height and 30mm in width, to save you space on your panel.

Features & Benefits

• Fixing collar made from Zamak (zinc alloy), so it's accurately cast for a secure fit and resistance to corrosion
• Screw clamp terminals create a simple and reliable connection
• 10A cartridge fuse provides protection from short circuits
• Long mechanical lifespan of 5,000,000 cycles makes it a sustainable component for control panels
• Wide operating temperature range between -40°C and +70°C for use in harsh industrial settings

Applications

• Automation and process control
• Industrial safety systems
• Building access and security

Can I use this contact block and collar on moving machinery?

Yes. This contact body is very light at just 62g, so it won't add unnecessary weight to your machine. It has a vibration resistance of 5GN (giganewtons), making it suitable for use with moving or automated equipment.

Approvals

UL; CSA

UL E164353
