ZB5AD2, Schneider Electric ZB5 Series 2 Position Selector Switch Head, 22mm Cutout, Black Handle

Schneider Electric Harmony ZB5 Selector Switch Heads for use with XB5 Switches

Featuring standard or long black handles and a range of positions, Schneider Electric offers the Harmony ZB5 series of switch heads. Round and produced from plastic, they are designed to be efficient, simple to set up, flexible and robust. All switch heads are available in different ingenious connection systems such as screw clamp, faston connector, spring terminal or PCB. We have a large range of Harmony ZB5 switch heads available in our catalogue with different positions and operator type to suit your needs, including attractive flush mount versions.

Features and Benefits:

• High performance in chemical environments
• Simple and quick installation
• Flexible and robust
• -40°C to 70°C operating temperature
• High vibration resistance

Protection ratings & Safety features:

• Conformity with IEC, UL, CSA standards
• IP69 conforming to IEC 60529, IP67 conforming to IEC 60529 and IP69K
• NEMA 13 and NEMA 4X
• IK06 conforming to IEC 50102

Applications - Designed for industry, building and infrastructure use ideal for extreme and food environments. Other applications include:
• Machines
• Control panels
• Distribution panels
• Restaurants
• Commercial buildings
• Airports

Standards

IEC, JIS

Approvals

UL, CSA

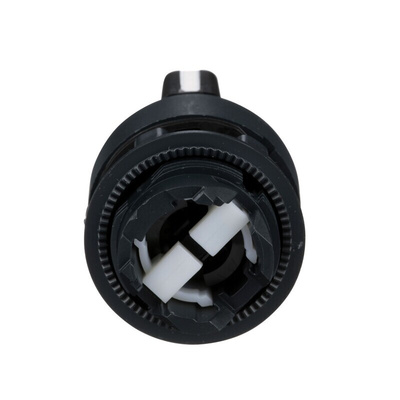

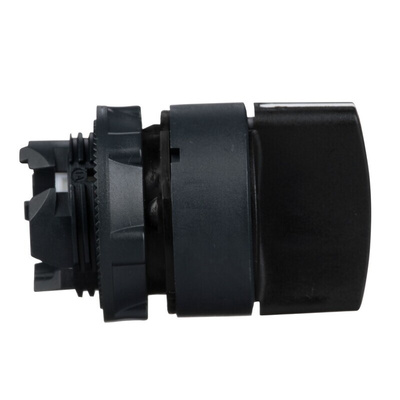

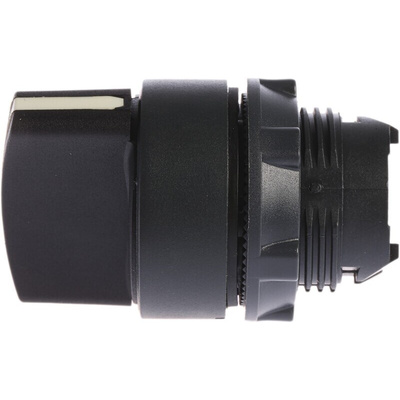

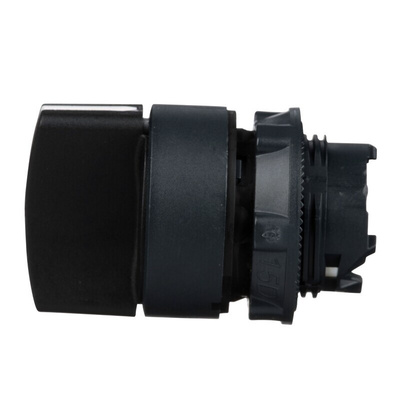

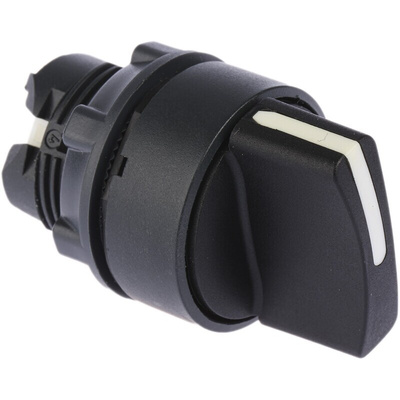

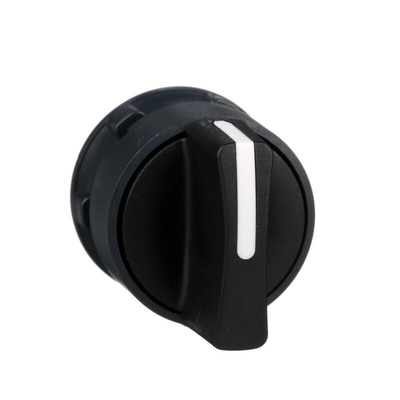

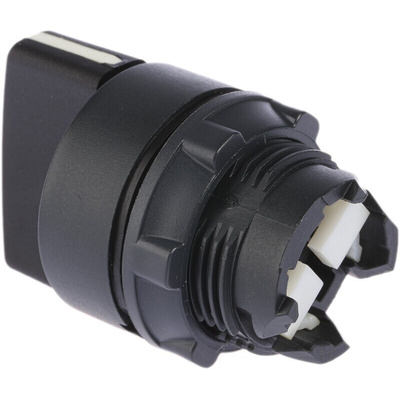

Schneider Electric Selector Switch Head, 90° Throw Angle, Round Head - Harmony XB5 Series - ZB5AD2

Need a simple way to change system settings? Grab this selector switch head from Schneider Electric. Thanks to its ergonomic design, you barely need to lift a finger to flip between its two positions. The small 22mm cutout diameter slots easily into place in standard control panels. The unit's coated in a protective TH treatment to give industrial contaminants the slip. An eye-catching line marks the actuating position of the head, so you know at a glance what your equipment's doing.

Features & Benefits

• Compact dimensions of 29 (H) x 29 (W) x 46mm (D) so it fits neatly into packed enclosures
• Low weight of 17g means minimal strain on your system
• Mechanical durability of up to one million cycles for longevity
• IP69K rating means it's completely dust-tight and withstands hot, high-pressure washdowns in hygiene-critical applications

Applications

• Food and beverage industry
• Factory automation
• Machine control panels

Can I use this switch in harsh industrial settings?

Yes. The device performs reliably in a broad temperature range between -40°C and +70°C, so it's ideal for use in challenging industrial conditions.

Is this assembly environmentally friendly?

Yes, it's free from toxic heavy metals, mercury and substances of very high concern, so it's an environmentally conscious choice.
