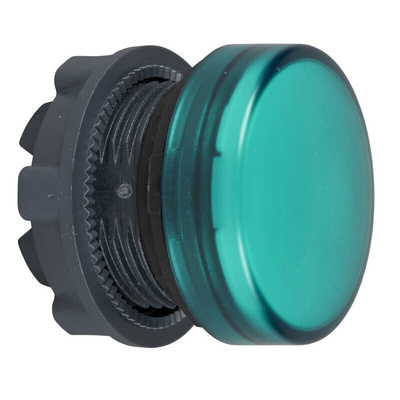

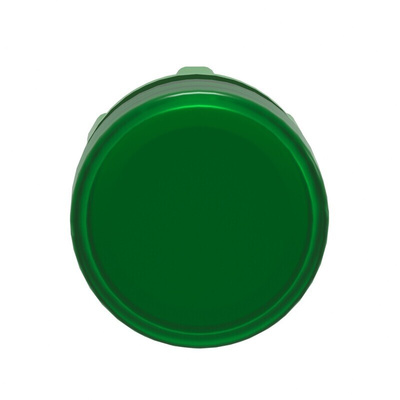

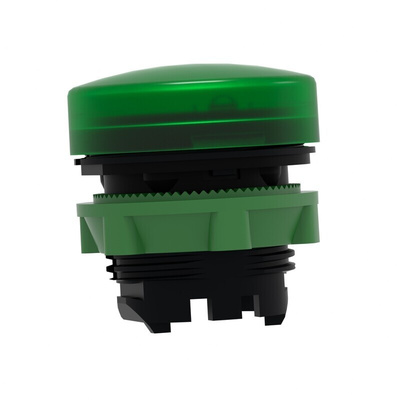

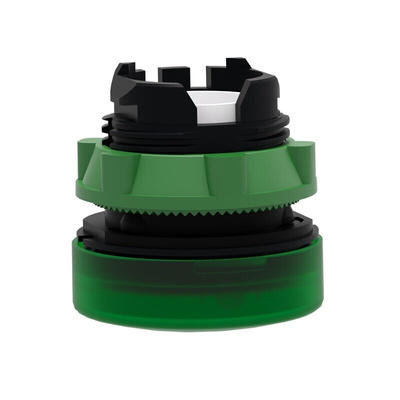

ZB5AV03, Schneider Electric Green Pilot Light Head, 22mm Cutout Harmony XB5 Series

Illuminated Head for Pilot Light

Pilot light heads for use with body consisting of either integral LED only or BA9s incandescent bulb, neon, or LED.

The colour of the head should be matched with the same colour of the chosen LED block.

Standards

IEC, JIS

Approvals

UL, CSA

Schneider Electric Pilot Light Head, Green Illumination, 22mm Mounting Diameter - Harmony XB5 Series - ZB5AV03

In search of an illuminating solution for monitoring your industrial process? Take a shine to this pilot light head from Schneider Electric. The integrated LED lights up the 29mm-wide green-coloured surface to alert you to your connected equipment's operating status. Handily, replacing the bulb is easy as the BA9s base supports a standard LED. Thanks to this product's IP66 rating, you can rest assured it's dust-tight and protected against high-pressure water jets from any direction.

Features & Benefits

• Light weight of 18g keeps your setup free of unnecessary pressure
• Flexible fitting thanks to its broad compatibility with screw clamps, spring terminals, Faston connectors and PCBs
• Cutout diameter of 22mm for installing it in a standard industrial panel
• Environmentally friendly, as it's free of mercury and other toxic heavy metals

Applications

• Commercial buildings
• Telecommunications equipment
• Industrial automation and control

What's the operating temperature range of this unit?

This hardy device withstands temperatures between -40°C and +70°C, so it reliably performs in demanding work areas like factories and warehouses.

UL E164353
