ZBE102, Schneider Electric Harmony XB Series Contact Block, 600V ac, SPST, Контактный блок

Schneider Electric | Harmony XB4/5 Series (ZB5AZ) | Contact Blocks

Introducing the Harmony XB4/5 series of ZBE Contact blocks from Schneider Electric. High quality, high performing contact blocks are a necessary part of your day to day operations, providing consistency to your machinery, operations and overall performance.

Features and benefits

• Short-circuit protection via a 10 A cartridge fuse, providing excellent circuit protection.

• Lightweight, easy to fit and configure. Easily removable and adjustable. Front mounting.

• Operating temperature of between -40 to 70 °C.

• 1,000,000 mechanical cycles of durability.

• Schneider Green Premium product as standard across the XB4 Contact block range.

• 18-month manufacturer warranty with Schneider

Protection ratings -

• IP 20 conforming to IEC 60529 (protection from smaller objects, such as fingers)

• EN/IEC 60947-1, 60947-5-1 & 60947-5-4.

• UL 508 & CSA C22.2 No 14.

• Vibration resistance to 5 gn 2, suitable for a wide variety of areas that may require devices to be moved.

• Shock resistance to 30 gn (18 ms duration) conforming to IEC 60068-2-27

Applications -

• Used in conjunction with push buttons, signal controllers and more.

• Applicable uses within machine, chemical or marine applications

• Perfect for service sectors, energy distribution panels and more.

Standards

IEC, JIS

Approvals

UL, CSA

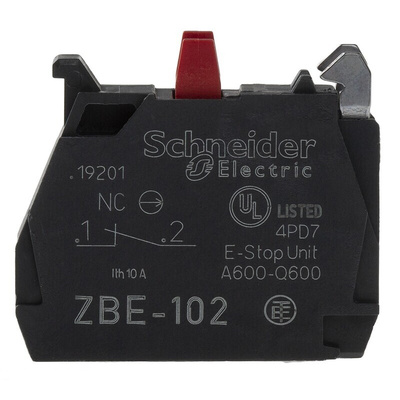

Schneider Electric Contact Block, 1NC, 600V AC - Harmony XB Series - ZBE102

Use this contact block from Schneider Electric to connect a switch to your panel. The front-mounting, clip-in design makes it quick to attach or change a push-button, light or controller, so installation is simple. To ensure safe use, it features a 10A cartridge fuse that protects wiring and equipment from short circuits. As this block has a high voltage rating of 600V AC and a wide operating temperature range of -40°C to +70°C, it's a robust solution for demanding industrial applications.

Features & Benefits

• Screw clamp terminals for a simple and secure connection
• Long mechanical lifespan of 10,000,000 cycles makes it durable and sustainable
• Shock and vibration-resistant to withstand heavy-duty machine applications

Applications

• Power distribution panels
• Process control and automation
• Building safety and security

What type of electrical configuration does this contact block have?

The block has one NC (normally closed) contact. This means that the electrical circuit is closed by default and opens when you press a button or turn a switch. This makes it a good choice for use in stop-button applications.

UL E164353
