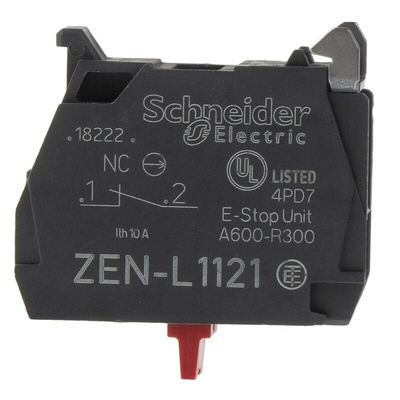

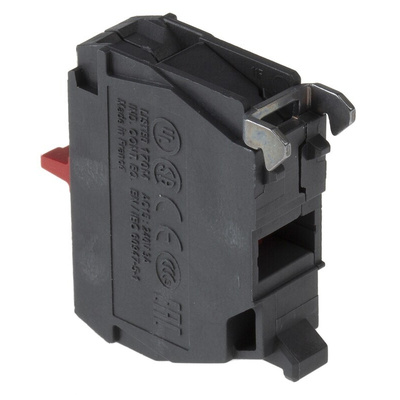

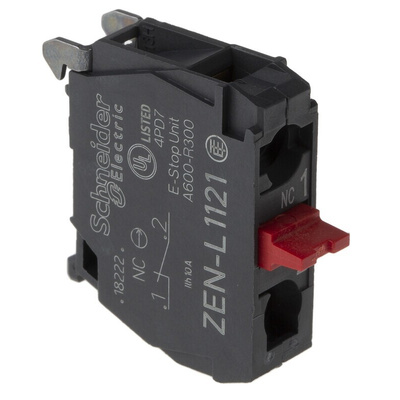

ZENL1121, Schneider Electric Harmony XAL Series Contact Block, 1NC, Контактный блок

Schneider Electric | Harmony XAL Series (ZENL) | Contact Blocks & Light Blocks

The Harmony XAL range of Contact & Light Blocks by Schneider Electric offers you reliable performance across the range. The Harmony range is stress tested by Schneider Electric to ensure you get the highest quality, reliable product possible to ensure user safety.

Features and benefits

• Slow break contact operation in conjunction with pushbuttons for quicker action (depending on the speed of the operator).

• 1,000,000 cycles of mechanical durability, robust and reliable to ensure continuous operation.

• Lightweight, easy to fit and configure. Easily removable and adjustable. Front mounting.

• Operating temperature of between -40 to 70 °C. Check the datasheet for further information.

• Schneider Green Premium product as standard across the XB4 Contact block range. Environmentally friendlier than alternatives, easy to dispose of safely.

• 18 month warranty period with Schneider Electric.

Protection ratings -

• IP20 conforming to IEC 60529

• EN/IEC 60947-1, 60947-5-1 & 60947-5-4.

• UL 508 & CSA C22.2 No 14.

• Vibration resistance to 5 gn, suitable for a wide variety of areas that may require devices to be resistant to movement. This conforms to IECE 60068-2-6

• Shock resistance to 30 gn (18 ms duration) conforming to IEC 60068-2-27

Applications -

• Used in conjunction with push buttons, signal controllers.

• Applicable uses within machine, chemical or marine applications

Standards

IEC, JIS

Approvals

UL, CSA

Schneider Electric Contact Block, 10A, 1NC - Harmony XAL Series - ZENL1121

Use this contact block from Schneider Electric to easily activate signal controllers and push-buttons. It can withstand high vibration forces of up to 5GN (giganewtons) and is shock-resistant up to 30GN, making it a good choice for use with heavy-duty or moving machinery. The contact block also has a thermal treatment to protect it from overheating, ensuring more reliable use in demanding applications.

Features & Benefits

• Long lifespan of up to 10,000,000 electrical cycles for durability and sustainable use
• Silver alloy contacts provide high electrical conductivity while resisting corrosion, ensuring a reliable connection
• Light weight of just 0.015kg makes it simple to mount and adjust while minimising strain on your equipment
• Broad operating temperature range of -40°C to +70°C for use in demanding environments

Applications

• Circuit breakers
• Protection relays
• Control panels
• HMI (human-machine interface) terminals

What safety features does this contact block have?

The contact block's IP20 (ingress protection) rating means it's touch-proof, so you're protected against electrical hazards while handling it. It also includes a 10A cartridge fuse to prevent short circuits, ensuring greater electrical safety.
