RS PRO 0.6 → 1 A Motor Protection Circuit Breaker, Автоматический выключатель

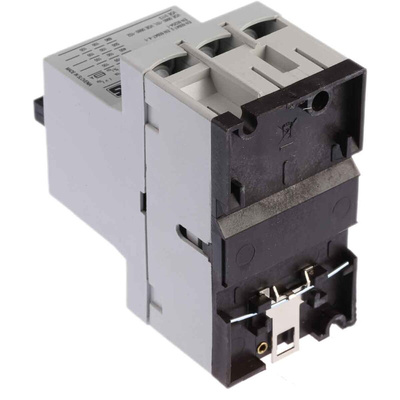

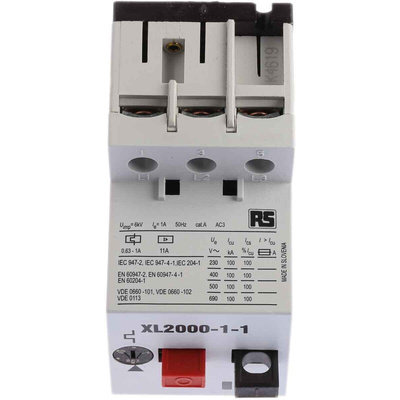

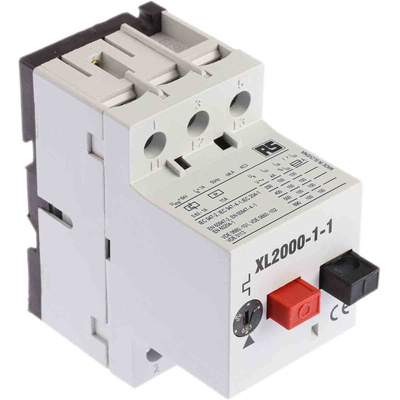

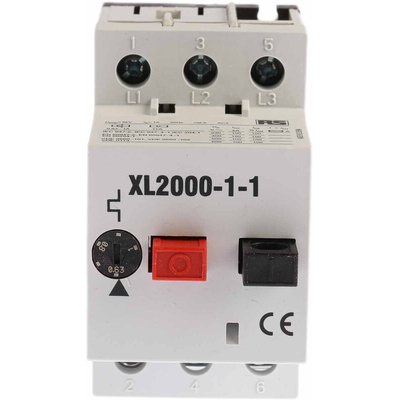

RS PRO 0.6 to 1 A Motor Protection Circuit Breaker

Use this motor-protection circuit breaker from RS PRO to prevent damage to industrial circuity and to reduce the frequency of electrical problems. This component is used to control and isolate a motor, while offering protection against overloads and short circuits.
This motor-protection circuit breaker (MPCB) offers short circuit protection. This means that if your prospective fault level is less than the breaking capacity of the circuit breaker, you don't have to worry about adding extra back-up fuse protection. For safety, you can lock the component securely into an off position when not in use.
This motor-protection circuit breaker works with the RS PRO MS25 series. When open, you can use it in temperatures as low as -25°C and as high as +55°C, or up to +40°C when closed – so it's suitable for a range of industrial and commercial settings. You'll commonly find it in construction sites and manufacturing plants.

Features and Benefits

• Current range of 0.6 to 1 A
• Depth of 73.5 mm
• Length of 80 mm
• Width of 45 mm
• Dimensions of 80 x 45 x 73.5 mm
• Suitable for use with the MS25 series
• Circuit-breaker motor protection component
• XL2000 series
• Screw terminal type
• Voltage rating of 690 V

RS Pro Datasheet
