RS PRO 1.6 → 2.4 A Motor Protection Circuit Breaker, Автоматический выключатель

RS PRO 1.6 → 2.4 A Motor Protection Circuit Breaker

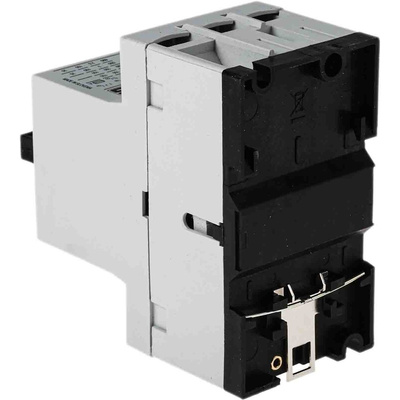

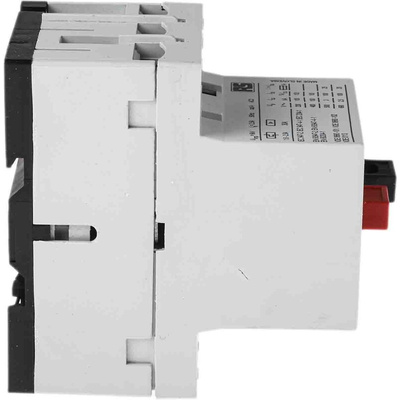

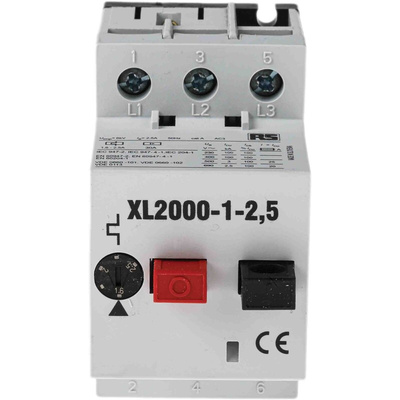

This RS PRO motor protection switch is a device used to protect against overloading or failure due to an external conductor. It monitors current consumption and acts as a circuit breaker when the current reaches a specific limit. You'll often find a protection switch used on small machines.

You can adapt this switch to the needs of your system as you can position it either horizontally or vertically using its screw termination. It's voltage rated at 690 V and automatically switches off at a high current using either thermal or magnetic release. It's capable of performing up to 40 circuit breaks per hour and can be reset.

Use this motor switch in industrial and building settings with equipment like chillers, heat pumps and cooling towers. Part of the RS PRO range, it's been stringently tested by leading engineers.

Features and Benefits

• Motor protection switch
• Current range of 1.6 A to 2.4 A
• Voltage rating of 690 V
• Length of 80 mm
• Width of 45 mm
• Depth of 73.5 mm
• For use with the MS25 series
• Screw terminal

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
