RS PRO 2.4 → 4 A Motor Protection Circuit Breaker, Автоматический выключатель

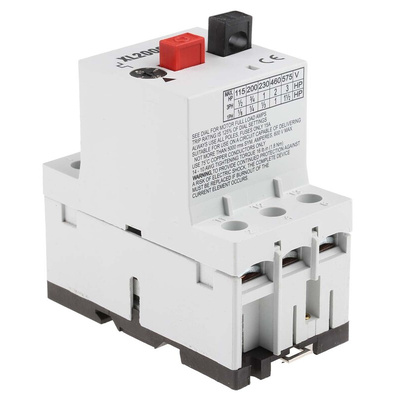

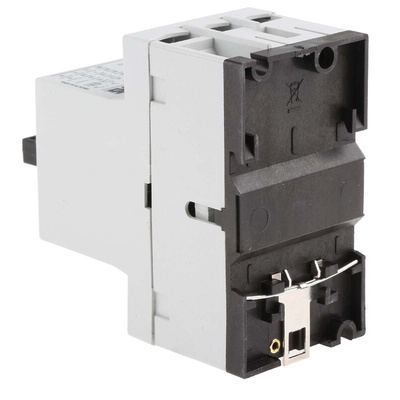

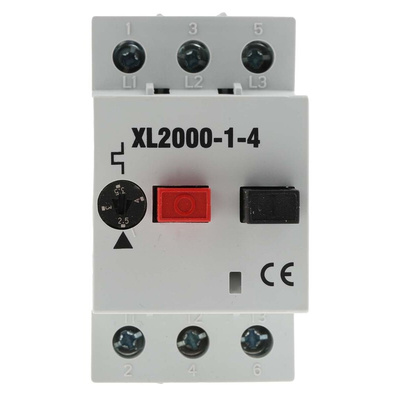

RS PRO 2.4 → 4 A Motor Protection Circuit Breaker

This RS PRO motor protection device protects against overloading or failure due to an external conductor. It also acts as a circuit breaker when the current it's monitoring reaches a specific limit of consumption. A protection switch is commonly used on small machines.

Voltage rated at 690 V, this circuit breaker automatically switches off at a high current with either thermal or magnetic release. It can perform up to 40 circuit breaks per hour and you can reset it. You can position it either horizontally or vertically via its screw termination, so it's adaptable to the needs of your system.

Use this motor switch in industrial and building applications such as chillers, heat pumps and cooling towers. Part of the RS PRO range, it's been stringently tested by leading engineers.

Features and Benefits

• Motor protection switch
• Current range of 2.4 A to 4 A
• Voltage rating of 690 V
• Length of 80 mm
• Width of 45 mm
• Depth of 73.5 mm
• For use with the MS25 series
• Screw terminal

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
