PTS100/200 RJ11, Tempo PTS100/200 Tone Generator, 1004Hz Tone Frequency

PTS100/200 - Pair Tracing Kit

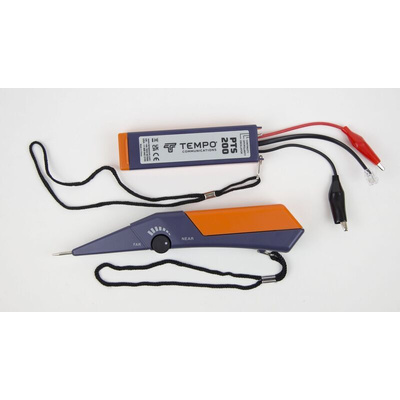

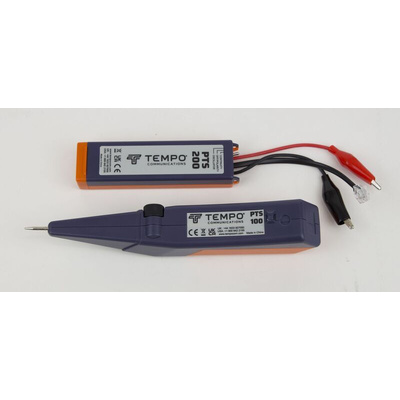

The PTS Pair Tracing System comprises the PTS 200 Tone Generator and the PTS 100 Probe in a woven polyester carrying pouch. The System is designed to provide an easy to use and cost effective means of tracing wire pairs

Fast, Accurate Wire Identification
Sends Tone to Identify Wires
Polarity Indication
Continuity Test
Adjustable Volume Control
Easy to Operate
2-Line Modular Test Lead
Rugged Industrial design
Water Resistant

Typical Applications:

PTS 200 Tone Generator:

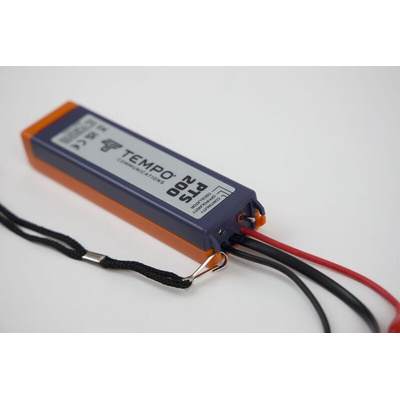

The PTS 200 may be connected via the modular plug or the crocodile clips to the pair under test. Depending on the switch position the Tone Generator will test Polarity continuity or short circuits. The PTS 200 can be used on twisted pair wiring (Telecom, Datacom, security / alarm, audio and electrical), single conductors, coaxial cables, de-energized AC wiring and just about any other wiring you can think of.

PTS 100 Probe:

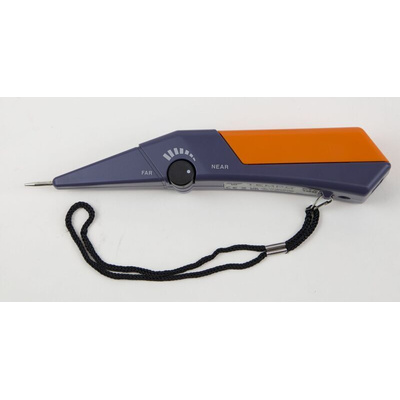

The PTS 100 Probe has a built-in loudspeaker to make it easy to hear the tracing signals and a near/far sensitivity Adjustment to allow both broad searches and pinpoint identification of wires. To operate just press the button on the top and adjust the sensitivity control to hear the tone generated by the PTS 200

Note

Only for use on non-powered cables, powered by PP3 batteries (not supplied).
Image for illustration purposes only

50450808 Cable Tracer is equipped with an RJ11 plug.

PTS 200 PAIR TRACING OSCILLATOR Operating instructions

PTS 100 PAIR TRACING PROBE Operating instructions

PTS100-200 Datasheet
