RS PRO Male RJ22 Connector, Cable Mount, Разъем

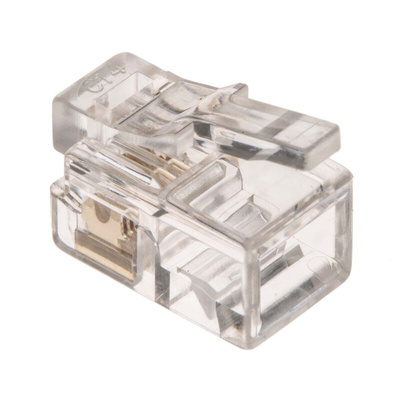

RS PRO, Male RJ22 Modular Plug Connector

When connecting asymmetric digital subscriber line (ADSL) modems to office or home telephone sockets, you often need to allow for additional capacity. This versatile, cable-mount RS PRO RJ22 plug has four wireable contacts on the inside rather than the standard two to allow for additional lines.

Part of the RS PRO range, this plug has been tested by leading engineers for durability, consistency and quality – essential for professionals. It has resilient phosphor bronze contacts that are gold-plated for corrosion resistance and protection from rust. This plug meets safety standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, so it will guard against damage due to electrostatic discharge.

RJ22 plugs will transmit data at speeds up to up to 24 Mbit/s, so you can use them with equipment such as fax machines and telephones.

Features and Benefits

• Male RJ22 plug
• Modular
• Dimensions of 6.6 mm (L) x 12.3 mm (D)
• Straight orientation
• Output current of 1.5 A
• Voltage rating of 30-42 VAC
• Gold-plated, phosphor bronze corrosion-resistant contacts
• High-quality polycarbonate housing for durability
• Complies with RoHS standards on the restriction of hazardous substances
• Meets electrostatic standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet

RS PRO Datasheet
