Aoip Instrumentation OM 10 Handheld Ohmmeter, 50000 Ω Max, 0.1 °C, 1 V, 10 μΩ Resolution, 4 Wire, Омметр

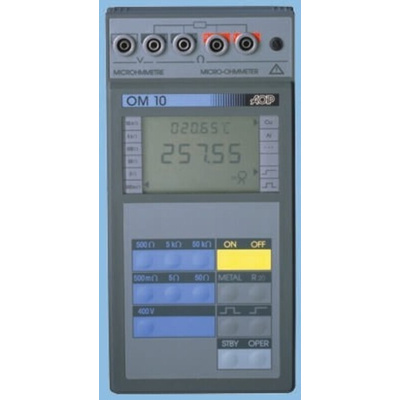

Winding resistance tester resolution 10μΩ AOIP OM10

The OM10 micro-ohmmeter measures all resistances and windings from 10 μΩ (resolution) → 50 kΩ.
Ranges from 500 mΩ → 50 kΩ.
Portable and self-contained field enclosure with stand for tabletop use.
Measurements on 4 wires for resistances such as:
- Power supply cable
- Weight continuity braid
- Contact resistance
- Mechanical connection (solder)
- Motor
- Transformer.
Automatic compensation for EMF parasites, eliminating errors in measurement.
Display of the measured resistance value at 20 °C, depending on the ambient temperature and the temperature coefficient of the metal being measured.
Power supply via integral rechargeable battery or mains power.
Delivered in carry case with instructions and mains charger adapter.

Standards

EN 61010-1

OM 10 On Site Micro-ohmmeter Data Sheet

Contains SVHC - Cadmium - CAS No. 7440-43-9

Restricted to Professional Users Only

Permitted use of Nickel Cadmium (Ni-Cd) Batteries
