8471.00U152, Belden 2 Core, 1.3 mm² CSA, 6.96mm od, 152m, Chrome, Кабель

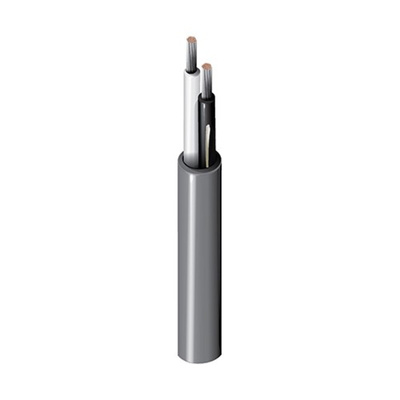

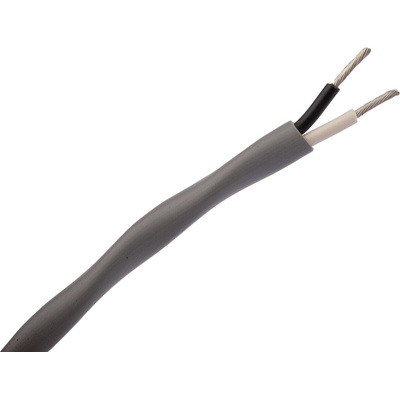

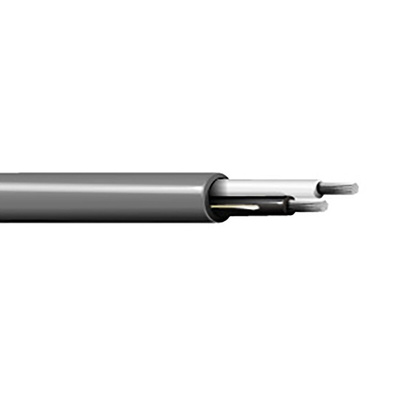

Belden Multicore Instrument Cable, 16AWG, Tinned Copper Conductors - 8471 Series - 8471.00U152

Do you want to send signals in a demanding workplace? Go for this Belden multicore instrument cable. Its PVC outer sheath is impact-resistant and its internal core is stranded, so it's routable around corners or through tight spaces without risk of damage. A high voltage rating of 300V shows it's safe to use in powerful electrical systems. Both ends are unterminated, so it's ideal for custom wiring.

Features & Benefits

• Slim outer diameter of 6.96mm fits into smaller enclosures or conduits
• Withstands temperatures from -20°C to +60°C, making it suitable for use in challenging environments
• PVC insulation resists chemical damage for added protection in heavy-duty applications
• Maximum pull tension of 43kg assures you it's strong and built to last

Applications

• Control panels
• PC networks
• Audio equipment

How long is this cable?

This unit comes as a 152m reel, so it's ideal for laying long runs of cable or cutting down to size.

Standards

NEC CMG; UL Rated
