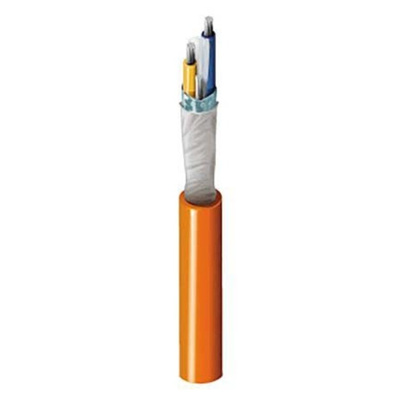

3076F 003500, Belden 3076F Multicore Industrial Cable, 2 Cores, 0.9 mm², Screened, 152m, Orange PVC Sheath, 18 AWG, Кабель

Belden Orange Multicore Industrial Cable, 5.2A Current Rating, 152m Length - 3076F 003500

When you need to transfer data between Fieldbus-enabled instrumentation devices, use this industrial cable from Belden. A patented Beldfoil shield protects the conductors from signal interference, while a drain wire grounds irregular current to prevent electrical malfunction. The PVC outer jacket is resistant to oils and UV light, making this a durable choice. Thanks to its broad operating temperature range between -40°C and +105°C, the cable can withstand challenging environments. It has a low current rating of 5.2A, making it an energy-efficient option.

Features & Benefits

• Bright orange outer jacket for easy colour-coding in busy setups
• Highly conductive tinned copper conductors for reliable power transmissions
• Low insertion loss of 0.08dB/100ft for clear signal quality over long distances
• Durable polyolefin insulation for electrical safety
• Minimum bend radius 10 times its diameter to fit into tight spaces

Applications

• Communication equipment
• Marine industry
• Security systems
• Industrial control panels

How does Fieldbus Foundationcommunication work?

Fieldbus Foundation protocol is a two-way data transmission system to enable field devices to simultaneously communicate with a control system. In the event of downtime in the control unit, the field devices supported by this cable can still transmit signals between each other to maintain operation.

Standards

NEC PLTC CM
