9843 060500, Belden Twisted Pair Data Cable, 3 Pairs, 0.2 mm², 6 Cores, 24 AWG, Screened, 152m, Chrome Sheath, Кабель

3318916
Номер производителя: 9843 060500Производитель: Belden
Цена за 1 катушку (152 метра)
399352.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

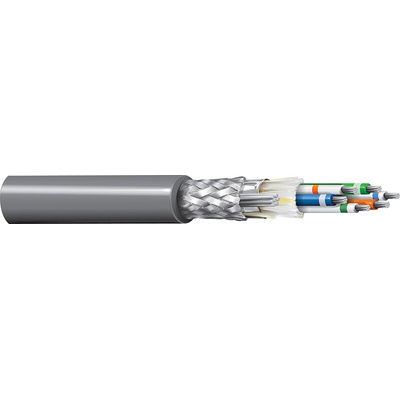

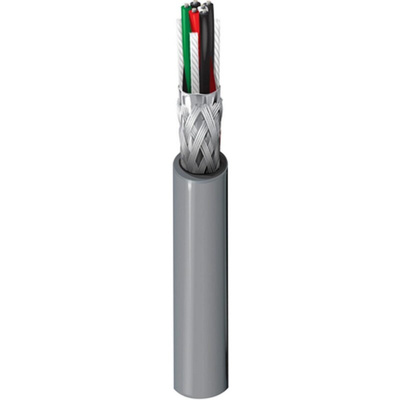

Belden Data Cable, RS-485 Cable Type, Beldfoil Z-Fold Shield - 9843 060500

Build RS-485 and DMX512 networks you can rely on with this 6-core data cable from Belden. Tinned copper conductors offer reliably high conductivity to relay your signals without a hiccup. They're protected from EMI by a Beldfoil Z-fold shield – plus a layer of tinned copper braid – to make sure interference from outside doesn't degrade your signal. The conductors are laid in twisted pairs to minimise crosstalk, which keeps your transmission clean.

Features & Benefits

• Suitable for industrial environments, thanks to an operating temperature range of -30°C to +80°C
• Flame-retardant PVC sheath improves workplace safety
• 152m length gives you a ready supply and can be cut to the exact length you need

Applications

• Commercial aircraft
• Lighting controls
• Office networks

What's RS-485?

RS-485 is a standard for receivers and drivers used for industrial control systems and telecommunications. It indicates the kit, which is frequently used in a commercial aircraft cabin's vehicle bus, supports long-distance data transmission.

Standards

NEC CM; UL2919
