8164.00152, Belden Multipairs Multipair Industrial Cable, 4 Pairs, 0.23 mm², 24 AWG, Screened, 152m, Chrome Sheath, Кабель

Belden Multipair Industrial Cable, Datalene Insulation, 12.5pF/ft Conductor-to-Conductor Capacitance - 8164.00152

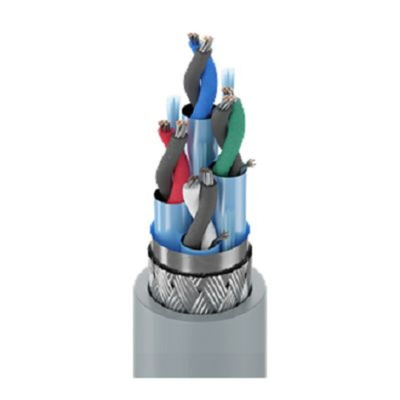

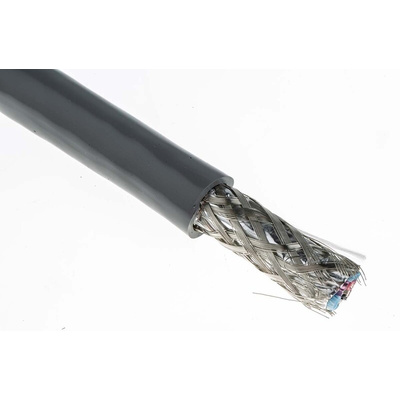

For error-free data transfer between components in your industrial equipment, go for this multipair cable from Belden. It carries signals from machines to your computer, so you can monitor and configure operating conditions. The cable has eight conductors that are twisted in pairs to prevent EMI. Aluminium foil-polyester tape shielding ensures you get noiseless signal transmission. Innovative Datalene insulation keeps you safe from electric shocks, but has a low dielectric constant to ensure the cable handles low-distortion transmission.

Features & Benefits

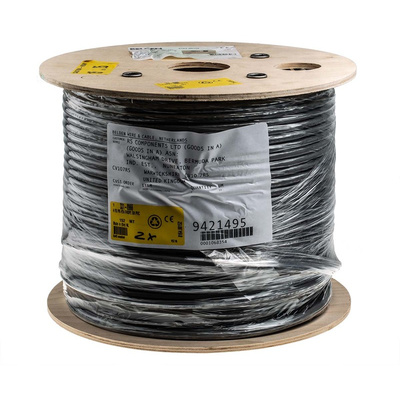

• Cable length of 152m for long runs or lots of jobs
• Low conductor-to-conductor capacitance of 12.5pF/ft for high-integrity signal transmission
• PVC jacket makes the cable impact-resistant for use in harsh environments

Applications

• Robotics systems
• Assembly lines
• Measurement and instrumentation devices

What's the function of the drain wire in this cable?

The drain wire provides an easy grounding point for the shield, which helps in preventing and diverting EMI.

Standards

UL2493; NEC CM
