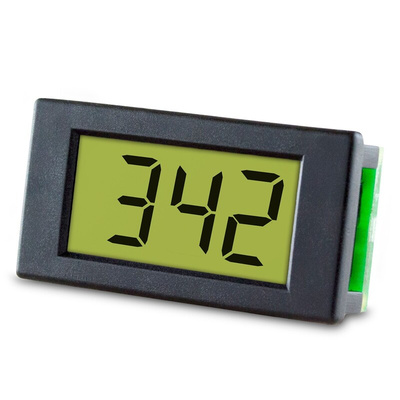

Lascar Digital Ammeter
The Lascar digital ammeter is a compact, loop-powered indicator that gives an accurate, zero corrected indication of 4-20mA loop current. It has calibration using 2 multi-turn potentiometers that allow sensitive adjustments of the instrument. The product features an integral snap-in bezel, making installation easy. The module’s LED backlight ensures a clear display, even under low light conditions.
Features and Benefits
Auto-polarity on display
Connection to the loop is via 2 screw terminals
Cut-out height is 18mm
Cut-out width is 38mm
Depth is 17.1mm
Loop powered
Low volt drop
Meter accuracy is ±0.1 %
No soldering is required
Operating temperature ranges between 0°C and 50°C
Programmable decimal points
Simple screw terminal connections
The correct decimal point is selected via jumper link
Wide adjustment range
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
DPM 342 4-20mA Current Loop IndicatorDPM342 LED Backlit 4-20mA Loop Powered Indicator User Manual| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
