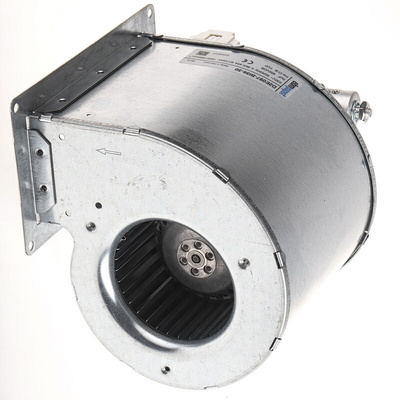

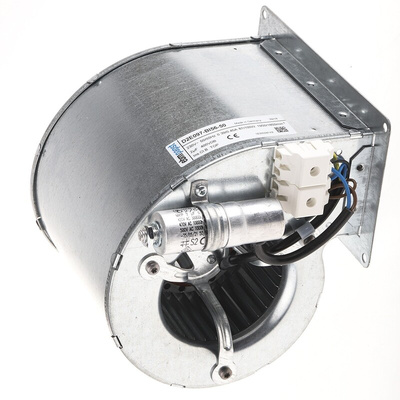

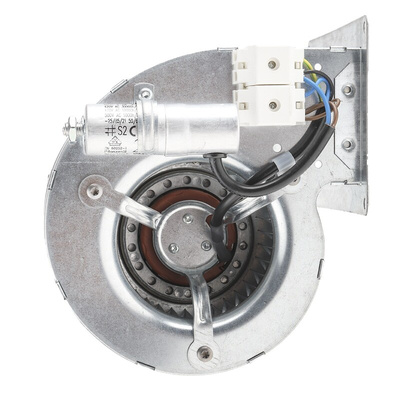

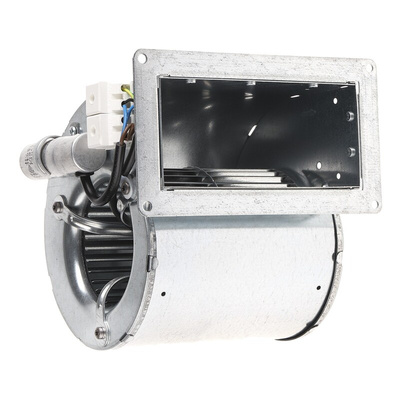

D2E097-BI56-50, ebm-papst D2E 097 Series Centrifugal Fan, 230 V ac, 435m³/h, AC Operation, 165 x 162 x 146mm

ebm-papst Centrifugal Blower

The ebm-papst D2E 097 series 230VAC dual inlet centrifugal blower has an electronically commutated motor with an external rotor motor. This blower is integrated within the impeller that reduces the installation dimensions. The fan is featured with forwarded curved blades. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. The robust and space-saving design of this ebm-papst centrifugal blower makes it versatile and easy to use.
Note:
To prevent overloading the motor, it should be operated against the minimum static pressures.

Features and Benefits

Motors are sealed for life, maintenance free, class B insulation
Impeller is forward curved multi-vane type
Body is made from heavy duty, riveted galvanised steel
Ball bearing type may be mounted in any position
Noise level is 58dB
Airflow of 435m³/hour
Fan speed is 1950rpm

Certifications

EN 60335
CE certified
IP44 rated

Datasheet

D2E097-BI56-50 Datasheet

D2E097-BI56-50 Operating instructions
