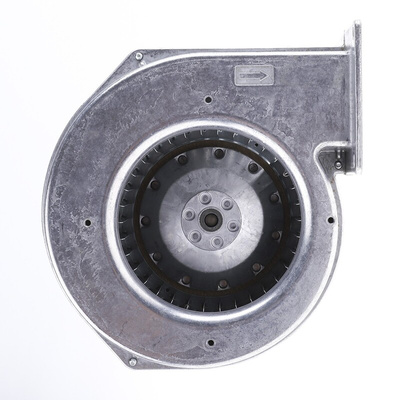

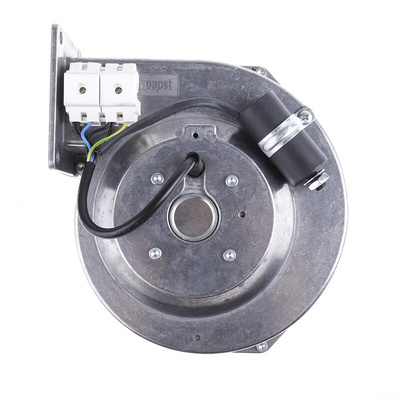

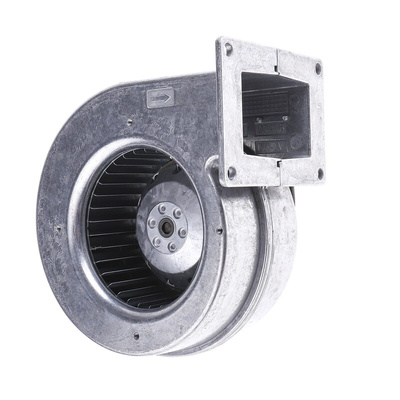

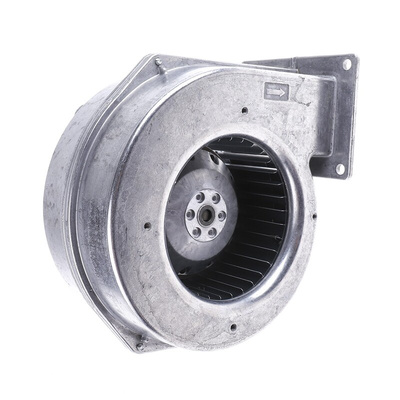

G2E120-AR77-A6, ebm-papst G2E120 Series Centrifugal Fan, 230 V ac, 255m³/h, AC Operation, 184 x 178 x 115mm

ebm-papst Single Inlet Centrifugal Blowers

ebm-papst single inlet centrifugal blowers are high performance fans with an external rotor motor which offers the advantage of a matched rotor and impeller in a compact space saving design. Constructed from die cast aluminium, ebm-papst blowers are rugged and long-life.

Features and Benefits:
• High performance fans with an external rotor motor
• Motors are IP44 rated, sealed for life, maintenance free, class B insulation
• Impeller: forward curved multi-vane type
• Scroll: die cast with motor capacitor, mounting flange and finger guard/filter fixings
• Ball bearing type, may be mounted in any position

Note

To prevent overloading the motor, these blowers must be operated against the minimum static pressures.

ebm-papst Centrifugal Blower

The ebm-papst 230VAC single inlet centrifugal blower is rugged and has long-life with an external rotor motor. This rotor motor offers the advantage of a matched rotor and impeller in a compact space-saving design. The centrifugal blower is constructed from die-cast aluminium. The fan is available with the dimension of 184mm long, 178mm wide and 115mm depth.
Note:
To prevent overloading the motor, it should be operated against the minimum static pressures.

Features and Benefits

• High performance fans with an external rotor motor
• Motors are sealed for life, maintenance free, class B insulation
• Impeller is forward curved multi-vane type
• Scroll of Die-cast with motor capacitor, mounting flange and finger guard/filter fixings
• Ball bearing type, may be mounted in any position
• Airflow of 255m³/hour
• Fan speed of 2350rpm

Applications

• Industrial use
• Central air conditioning units or building ventilation systems
• Automobile

Certifications

• CE certified
• IP44 rated

Approvals

CE
