ZBY2104, Schneider Electric Legend Holder for Use with XB4 Series, Arrêt

Label holder (30 x 40 mm) and labels

Metal label-holder designed for the Harmony XB4 range.
Label-holder 30 x 40 mm.
Labels 8 x 27 mm.

Approvals

UL, CSA, IEC, CE, JIS, NEMA

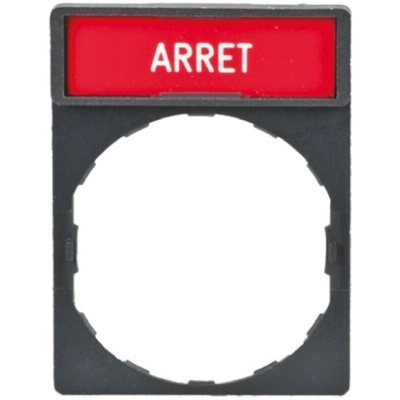

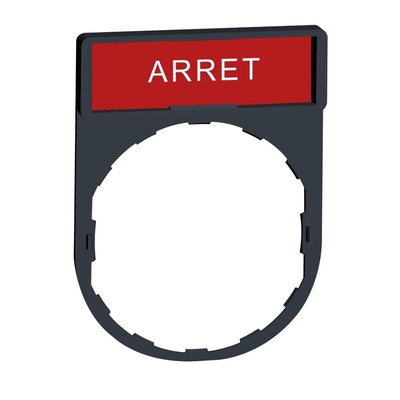

Schneider Electric Legend Plate, Pre-Marked 'ARRET', 40mm (L) x 30mm (W) - Harmony XB Series - ZBY2104

Clearly tag your push button using this legend plate from Schneider Electric. It houses a label so that operators can easily see an actuator's purpose. As it comes pre-marked with the French word "ARRET", meaning "STOP" in English, you'll find this product suitable for emergency stop systems. This unit's simple to mount without the need for tools – just slip it over a standard 22mm push button or pilot light from the Harmony XB4 or XB5 range.

Features & Benefits

• Ridged mounting hole keeps a secure grip on a button
• White engraved text on a contrasting red background is highly visible
• Low weight of 2g so it won't add any strain to your push button

Applications

• Automotive engineering
• Mining and quarrying industry
• Storage facilities
• Food and beverage production

What label size can this plate fit?

The legend plate houses an easy-to-read label with dimensions of 27 (L) x 8mm (W).

What's this plate made from?

It's made from robust plastic that offers insulation protection for electrical safety and also stands up to wear in busy setups.
