440N-S32023, Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 250 V ac, 300V dc, Plastic Housing, NO/NC, 3m, Выключатель

Allen Bradley Guardmaster Sipha 440N-S32023 Magnetic Non-Contact Safety Switch

Keep your machine processes running smoothly and safeguard personnel with the Sipha 440N-S32023 Magnetic Non-Contact interlock switch by Allen Bradley Guardmaster, expertly designed for use on machine guard doors and gates.

This advanced switch features magnetically sensitive elements which must be activated in a specific sequence to operate correctly, ensuring greater reliability. Power is isolated when the machine guard is released, preventing access to dangerous areas for operators as machinery cannot run until the safety barrier is closed. It is highly tamper-resistant as it is designed specifically to operate with its actuator and cannot be defeated by a simple magnet, giving you peace-of-mind.

These cost-effective safety switches are ideal for use with sliding, hinge, and lift-off safety guards. The control unit is used with a single sensor to ensure a high-integrity system in high-risk applications. The Sipha switch has facilities for connecting a manual reset button and monitoring external devices, such as contactors. For other applications, multiple sensors (including mechanical switches) can be connected to one Sipha control unit.

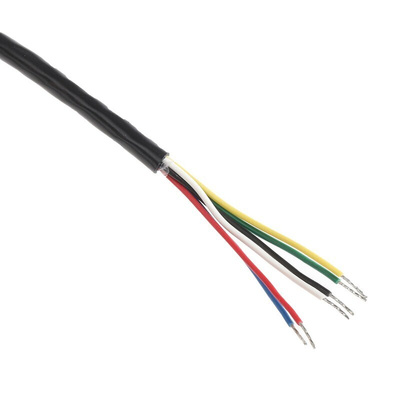

This Sipha switch has a supply voltage rating of 250V AC, 300V DC at 0.5A current, comes with S22 moulded ABS plastic housings and a 3m cable. It has 1NC/1NO Safety Contact and 1NC Auxiliary Contact. It can be mounted in any position and has an operating temperature range of -10°C to +55°C. It has a sensing distance of 9mm (Make) to 12mm (Break).

Features and Benefits:

• Non-contact actuation - long lasting due to less wear-and-tear, simple set-up, guard door can be opened immediately
• Reliable magnetic coded sensing for exceptional tamper resistance
• Must be operated with its own safety control unit, giving a monitored circuit
• Easy to install and versatile due to compact size and moulded-in brackets
• Sealed to IP67 – fully protected against dust ingress and can withstand temporary immersion in water

Certifications:

IP67 rated
EN954-1
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC60947-5-1
IEC/EN60947-5-3
ANSI B11.19
AS4024.1
CE certified
UL listed
TUV certified

What are magnetically coded non-contact safety switches?

A magnetically coded non-contact switch is a device used for monitoring the position of machine safety barriers. They are typically used in industrial environments. It uses a magnetically-actuated reed contact and a specially-coded actuator. When the barrier is opened the contacts will either open or close due to the magnetic force interrupting the circuit. As there is no contact between the sensor and actuator they take less wear, are resistant to shocks and vibrations, and are highly tamper-proof, which gives them a long service life. They are often used for sliding, hinge, and removable gates.

Allen Bradley Guardmaster provide a wide range of reliable machine safety switches and components to deliver cost-effective solutions for a variety of industrial applications, giving you maximum flexibility and control.
