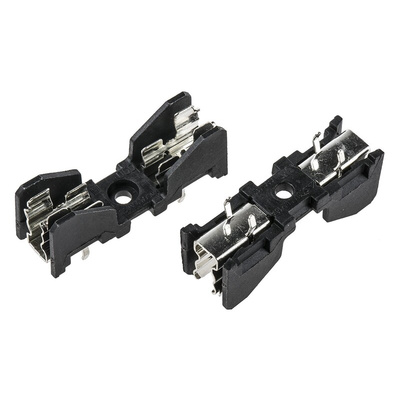

0031.8231, Schurter 10A PCB Mount Fuse Holder for 5 x 20 mm, 6.3 x 32 mm Fuse, 500V ac, Держатель предохранителя

'SCHURTER' Dual Size Fuseholders, OGD

Impossible to have both size fuse-links installed at the same time
Insulation walls reduce the risk of electric shock
Kicked PCB-terminals, tin-plated for optimised soldering on PCB
Clip-ends prevent axial fuse-link movement
First fuse 6.3 x 32 mm, second fuse 5 x 20 mm

Approvals

UL Recognised; UL Recognised for Canada

Schurter Fuse Holder

The Schurter OGD series dual size horizontal through-hole fuse holder has an electrical rating of 500VAC and 10A supply voltage. It provides the installation hardware for a fuse and preventing accidental misuses in the circuit. It's available in 5x20mm and 6.3x32mm cartridge type. The fuse carrier with screw cap and knob are spring-loaded bayonet type with screwdriver slot. It has a low profile fuse block with protective walls to reduce the risk of electrical shock.

Features and Benefits

• Both size fuse links are impossible to use at a same time
• Clip-ends prevent axial fuse-link movement
• Fuse carriers are easily replaceable
• Operating temperature ranges between -40°C and 85°C
• Shock safety
• Thermoset is used as a body material

Applications

• Industrial equipment
• Three -phase supply equipment

Certifications

• CSA 22.2 no. 4248.1
• IEC 60127-6
• UL 4248-1
• UL file number: E39328
• VDE certificate number: 40008993 (250V) + 40018378 (500V)

PCB Mounting

Voltage Rating 250V.

Datasheet
