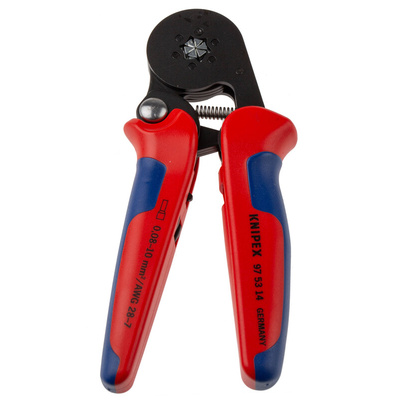

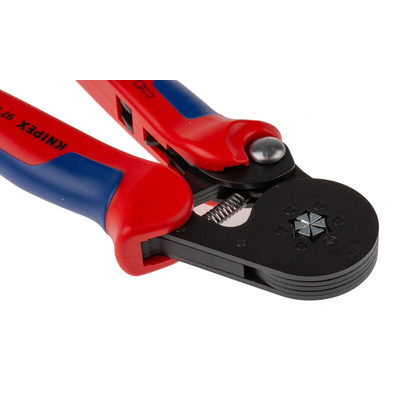

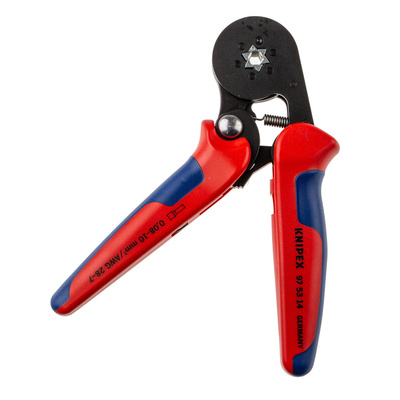

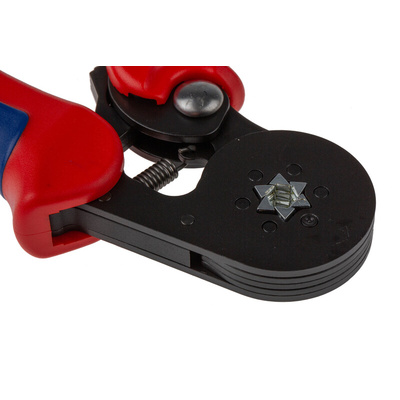

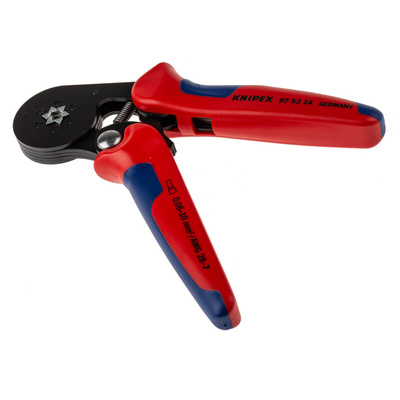

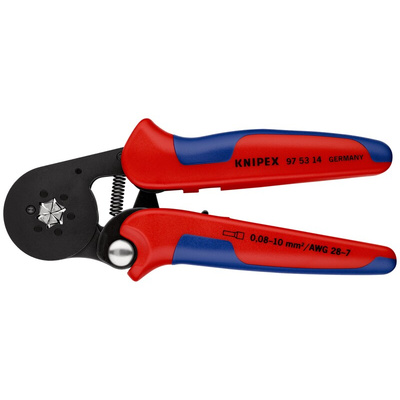

97 53 14, Knipex Crimping Tool, 187 mm Overall, Обжимные клещи

Automatic crimping tool for wire end ferrules from 0.08 to 10 mm²

This portable crimping tool is designed to crimp ferrules to bare multi-stranded wires, with a size range of 0.08 to 10 mm². The transmission ratio of this crimping tool has been well designed and it is therefore easy to use, offering a comfortable grip and allowing the user to crimp easily with a perfect result. Crimping can be easily done, leaving a hexagonal profile on the end sleeves (cable ferrules) or crimped ferrules, which makes the operation much easier if the connection dimensions are right.
Automatic, this Knipex crimping tool also automatically adjusts to the size of the ferrule to ensure precision work with every crimp. This feature means that the user does not have to waste time calculating the force when crimping, as the lock built into the crimping tool with release mechanism ensures that the correct amount of pressure automatically reaches the bit.

Features and benefits

- Amplified force due to toggle gearing for less tiring work
- Very comfortable to use due to its convenient shape and light weight
- Automatic cable crimping tool with lateral insertion
- Automatically adjusts to different cable cross-sections
- Produces a hexagonal crimp profile for easy insertion into terminal blocks
- Optimal positioning of contact surfaces in the mounting connection for small connection sizes
- Automatic locking for reliable crimping in accordance with DIN standards (non-locking)
- Crimp pressure is factory set and calibrated
- Low effort lever mechanism
- Easy to use shape with ergonomic handles
Capacities mm² / AWG : 0.08 to 10 mm². AWG from 28 to 7
Special grade chrome vanadium electric steel, oil-hardened

Typical applications

Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Crimp shop

Product maintenance

- To maintain proper operation and a long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants
- The setting of the crimping die ranges should also be checked.
- Adjustment of the pressure setting pin is necessary when the tool preload decreases significantly.

*Use a light non-mineral oil
