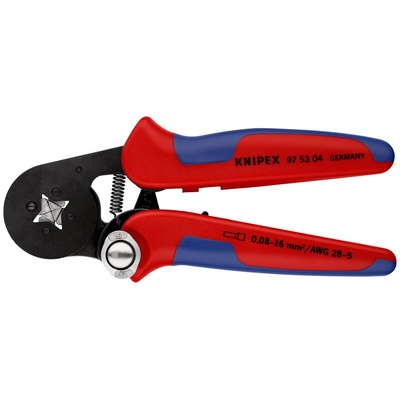

97 53 04, Knipex Crimping Tool, 180 mm Overall, Обжимные клещи

Automatic crimping pliers for wire end ferrules from 0.08 to 16mm² with side access

This self-adjusting crimping tool is designed to crimp wire end ferrules onto stripped multi-stranded wires, with a size range of 0.08 to 10mm² + 16mm² (with the rotation of the side adjustment wheel and thus increase the crimping capacity). The gear ratio of this crimping tool has been well designed and it is therefore easy to use, offering a comfortable grip and allowing the user to crimp easily with a perfect result. Crimping can be easily achieved, leaving a square profile on the end sleeves (cable ends).

Features and benefits

- Reduced handle opening
- For crimping cable end sleeves according to DIN 46228 Part 1 + 4 from 0.08 to 16 mm² - AWG 28 to 5
- Automatic adjustment to the desired ferrule size
- Constantly high crimping quality thanks to forced locking (can be released)
- Crimping pressure precisely set at the factory (calibrated)
- Increased force due to toggle gear for less fatigue
- Very comfortable to use thanks to its practical shape and light weight
- Square crimping also for wire end ferrules up to 16 mm².

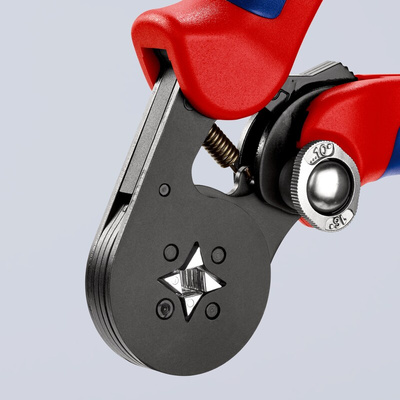

- Square crimp for optimum contact surfaces in the terminal
- Particularly suitable for all twin wire end ferrules up to 2 x 6 mm2 or 2 x AWG 8
- Capacities mm² / AWG : 0.08 to 16 mm². AWG 28 to 5
- Material : special grade chrome vanadium electrical steel, oil quenched

97 53 04 Datasheet
