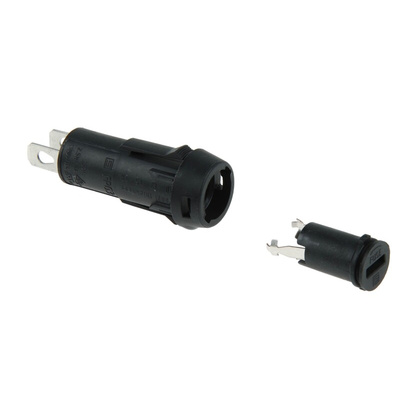

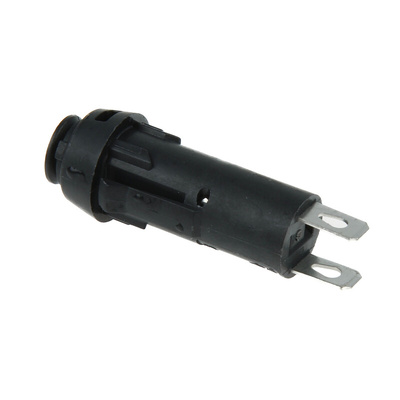

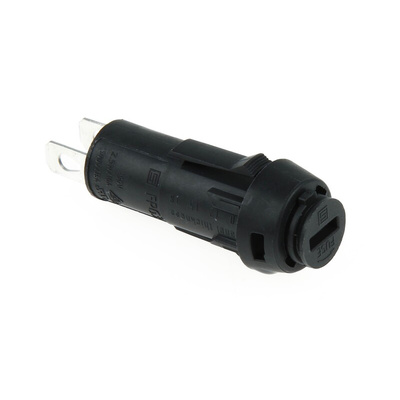

3101.0030, Schurter 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac, Держатель предохранителя

'SCHURTER' Bayonet Cap, Series FPG3

Terminals: 4.8x0.5mm for quick connector or soldering - depending on model
Sealed from the rear
Thermoplastic Body
Protection: PC2

Approvals

UL & CSA (16A/250V), VDE & SEMKO (10A/250V)

Schurter FPG3 Series Slotted Cap Panel Mount Fuse Holder

The Schurter FPG3 series 16A panel mount fuse holder offers current and voltage rating of 16A and 250VAC respectively. The body of this holder is made of thermoplastic material and tin plated copper alloy is used for contact. It has screw type fuse carriers.

Features and Benefits

• Compact design
• Compatible fuse dimension is 5mmx20mm
• Low insertion resistance due to contact material
• Sealed from the rear
• Solder terminal type

Applications

• Household appliances
• Industrial electronics
• Medical equipment

Certifications

• CSA certified
• IEC60127-6 certified
• IP40 rated
• IP67 rated
• UL 4248-1 approved
• VDE approved

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
