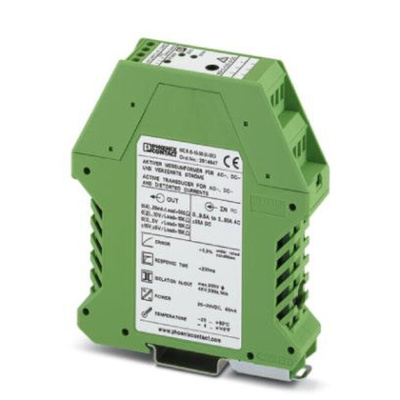

2814728, Phoenix Contact MCR-S10 Series Current Measuring Transducer, Current Input, Current Output, 20 → 30V dc Supply, Преобразователь тока

Phoenix Contact Current Transducer, MCR-S

The Phoenix Contact MCR-S series of Current Transducer brings you reliable signal conversion, allowing you to push the boundaries of your automation, measurement or control systems. Compact in nature and being able to operate in different temperatures, the MCR-S series offers you the stability needed in your working environment. The device is fully programmable and configurable, perfect for measuring direct, alternating or distorted currents.

Features and Benefits

• Built-in 3 number of inputs, with a current range of 0 A to 11 A (AC/DC)

• Power supply voltage range between 20 V DC to 30 V DC, with a Max. current consumption of less than 40 mA (without load)

• The device can be set up via DIP switches or MCR/PI-CONF-WIN configuration software

• True r.m.s value measurement

• Screw connection, M3 screw thread, 8 mm stripping length

• Different coloured status LED colours, available in green, yellow etc.

• IP20 degree of protection, noise immunity to EN 61000-6-2

• Overvoltage electrical category 3

• CE-compliant

Typical Applications

• Control systems

Phoenix Contact Current Transformer, 3 Way, 20 to 30V DC - MCR-S10-50-UI-DCI-NC - 2814728

Convert high primary current to low secondary levels using this Phoenix Contact current transformer. This device operates in a power supply to prevent overcurrent and lets you safely monitor voltage with an electrical measuring instrument like an ammeter. The 55:1 primary to secondary current ratio means you can use this transformer to convert large voltage inputs up to 55A AC/DC. A handy LED (light-emitting diode) signal conveniently shows you the device's status.
As it has a wide operating temperature range of -20°C to +60°C, this transformer's a versatile choice for use in demanding industrial environments. Phoenix Contact's trademark green casing is made from PA (polyamide) material that's abrasion-resistant and durable.
The chassis mount design lets you mount this current transformer in any position without complex wiring. Install it in your electrical control units for accurate reading of alternating, direct and distorted currents.

Features & Benefits

• Configuration via DIP (dual in-line package) switches or MCR/PI-CONF-WIN software to adjust settings
• IP (ingress protection) rating of IP20 prevents damage from solid objects over 12mm in size

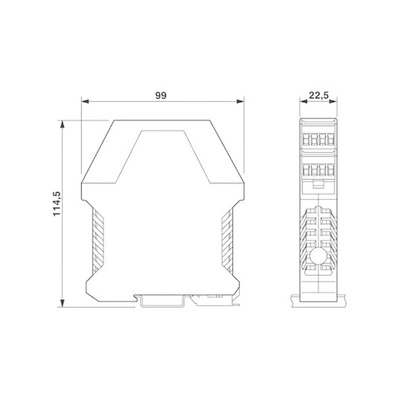

• Compact dimensions of 99 (H) x 22.5 (W) x 114.5mm (D)
