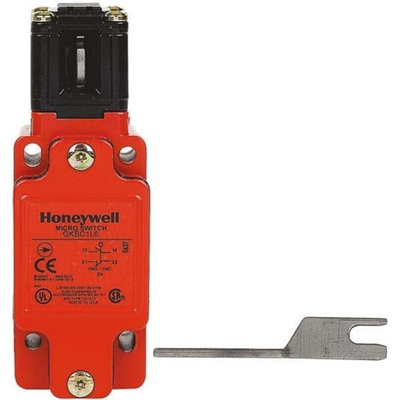

GKCC1L6, Honeywell GKC Safety Interlock Switch, 1NC/1NO, Keyed Actuator Included, Glass Filled PET, Выключатель

3373812
Номер производителя: GKCC1L6Производитель: Honeywell
Цена за шт.
149721.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

GK Series

Heavy duty construction for harsh industrial environments
Designed with a wide key entry tolerance, to accommodate drift in door alignment over the life of the machine,
Compliance with the relevant European directives is assured with this design. Each switch is available with either a straight or a 90° key.
Contact blocks have screw terminals enabling use of spade wiring terminals, complying with global safety requirements.
Galvanically isolated contacts permit wiring normally closed and normally open contacts to different loads and polarities.
Forced disconnect mechanism on normally closed contacts conforms to IEC 947-5-1.
Resistance to tampering
Built-in compensation for key misalignment
IP67, NEMA 4 sealed enclosure - withstands high pressure washdown
Typical applications include hinged and sliding guard doors, protective covers and enclosures on machine tools, packaging machinery, conveyors, elevators, cranes, hoists and lifts and construction machinery equipment
Dimensions: H42.6mm, W30mm, D121.6mm

Approvals

UL Listed, CSA Certified

Interlock Switch

Техническая спецификация
pdfGK Series Key Operated Safety Interlock Switches
pdfSwitch Standards
pdfMachine Guarding and Safety Range Overview
