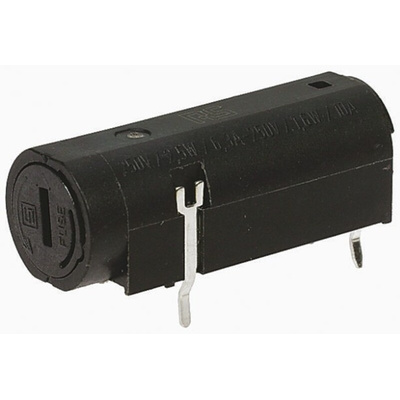

0031.3981, Schurter 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 250V ac, Держатель предохранителя

'SCHURTER' FBS2

For 5 x 20 mm fuses
Captive bayonet type fuse carrier, slotted
Crimped terminals retain fuseholder in PCB prior to soldering
Live parts are completely inaccessible to a probe measuring 1mm in diameter, even if the fuse link is replaced

Approvals

UL recognised component; CSA certified; SEMKO; VDE

Schurter Fuse Holder

The Schurter FBS2 series horizontal through-hole mount and slotted cap fuse holder has an electrical rating of 250VAC and 10A supply voltage. It provides the installation hardware for a fuse and preventing accidental misuses in the circuit. It includes a 5x20mm cartridge type. The fuse carrier with screw cap and knob are spring-loaded bayonet type with screwdriver slot. It has a low profile fuse block with protective walls to reduce the risk of electrical shock. The live parts are completely inaccessible to a probe measuring 1mm in diameter, even if the fuse link is replaced.

Features and Benefits

• Fuse carriers are easily replaceable
• Operating temperature ranges between -40°C and 85°C
• Shock safety
• Thermoset is used as a body material

Applications

• Medical equipment

Certifications

• CSA 22.2 no. 4248.1
• IEC 60127-6
• SEMKO
• UL 4248-1
• UL File Number: E39328
• VDE Certificate Number: 135561

PCB Mounting

Voltage Rating 250V.
