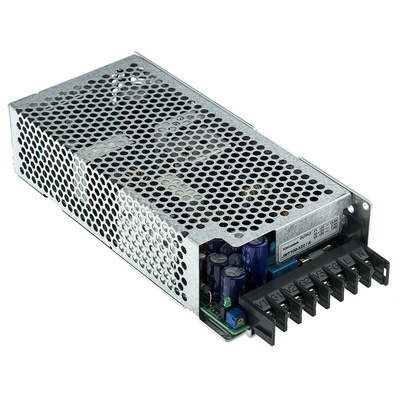

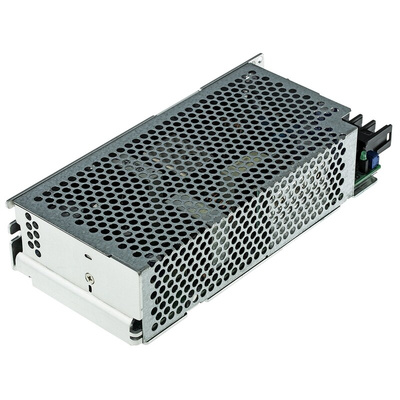

TDK-Lambda Switching Power Supply, JWT100-522/A, 5 V dc, ±12 V dc, 1 A, 5.5 A, 13 A, 100W, Triple Output, 120 →, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda JWT series 100W triple output AC to DC embedded switch mode power supply has an output current ratings of 13A at 5VDC, 5.5A at 12VDC and 1A at -12VDC. It has a universal input supply voltage rating from 85VAC to 265VAC and 120VDC to 330VDC.
Inclusions:
Complete with a cover (JWS50 de-rates to 60% at 55°C, JWS75/100/150 de-rates to 60% at 50°C).

Features and Benefits

Adjustable output voltage
Fully regulated output
Operating temperature range -10°C to 45°C (can be increased with the cover removed)
Overcurrent protection
Overvoltage protection
Power factor correction on all units

Applications

Automated test
Automotive
Burn-in and test
Chemical processing
Detection
Instrumentation
Materials handling
Measurement
NC-Machining
Packaging equipment
Process control
Robots
Test and measurement

Certifications

EN55011
EN55022-B
EN60950
FCC-B
TUV approved
UL approved
UL1950
VCCI-B

Approvals

TUV, UL Recognised Component for Canada & US

UL / CUL E122103
