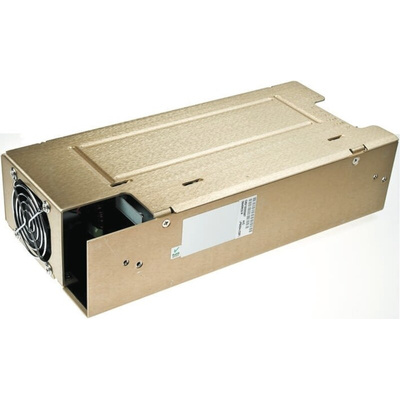

Artesyn Embedded Technologies Switching Power Supply, LPS355-CEF, 24V dc, 14.6A, 350W, 1 Output, 120 → 300 V dc,, Источник питания

Astec 350W Switch Mode Single Output AC/DC Power Supply - LPS 350 Series

250W switch mode single output AC/DC power supply with 2 supervisory outputs of 5V and 12V. This AC/DC power supply has active power factor correction, low output ripple, a built-in EMI filter and is supplied with an end mounted fan.

Remote sense
Single wire current sharing
Power fail and remote inhibit
Built-in EMI filter
Low output ripple
Efficiency of 75% typical at full load
Overvoltage, overload and thermal overload protection
2 supervisory outputs 5V and 12V
Safety ground leakage current of <0.5mA @ 50/60 Hz, 264 VAC input
Active power factor correction compliance to IEC EN6100-3-2
EMC compliance to FCC Class B conducted and radiated, CISPR 22 Class B conducted and radiated, EN55022 Class B conducted and radiated, VDE 0878 PT3 Class B conducted and radiated

Note

Derating from 50 to 70°C is 2.5% per °C.
Suitable connecting kit for this AC/DC power supply: stock number 151-638

Standards

VDE: 0805/EN60950 (IEC950), UL1950, CSA 22.2-234 level 5, NEMKO: EN 60950/EMKO-TUE (74 sec) 203, BABT: EN60950/BS7002

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; CB; BABT

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

Standards

EN61000-3-2

UL E186249

LPS355-CEF - Data Sheet
