RSF43Y100RF, Sensata / Cynergy3 Sensata/Cynergy 3 RSF40 Series Horizontal Nylon Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

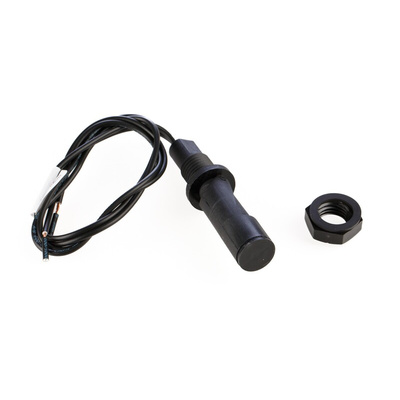

Sensata Cynergy3 Horizontal Internal Float Switch, NO/NC, 1 m - RSF40 Series - RSF43Y100RF

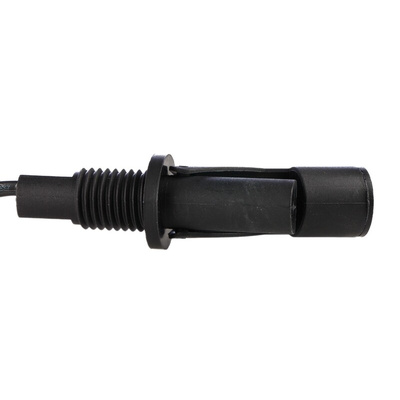

This horizontal float switch from Sensata Cynergy3 keeps the liquid level in your tank within a desired range. It can be used in the normally open (NO) or normally closed (NC) positions for versatile use. The switch action can be reversed by mounting the switch, so the float moves upwards away from the body instead of downwards. The lightweight nylon body has excellent abrasion resistance, so it won't easily be damaged. Its nitrile gasket provides good resistance to chemicals, making it suitable for use with various organic and inorganic substances and oils. This type of float switch is commonly used to monitor fluid levels in vending machines, commercial washing machines and evaporator units.

Features and Benefits

• Broad operating temperature range of -20°C to +75°C for use in harsh environments
• 1 m cable length for ease of connection

How do I mount this float switch?

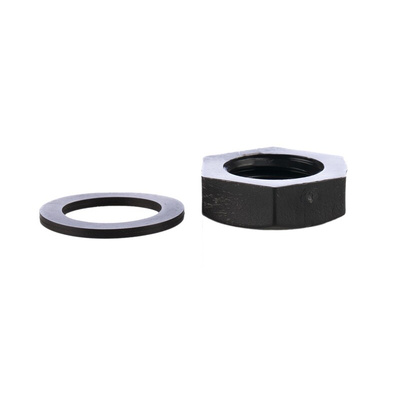

The float switch is designed for horizontal mounting inside a tank. Simply fit it into a 16.5 mm hole from the inside of the tank and use a nylon nut to secure it on the outside.
