RSF76Y100RV, Sensata / Cynergy3 Sensata/Cynergy 3 RSF70 Series Horizontal External Polyphenylene Sulfide Float Switch, Float, 1m Cable, SPNO, 240V ac

Cynergy3 Horizontal Float Switches

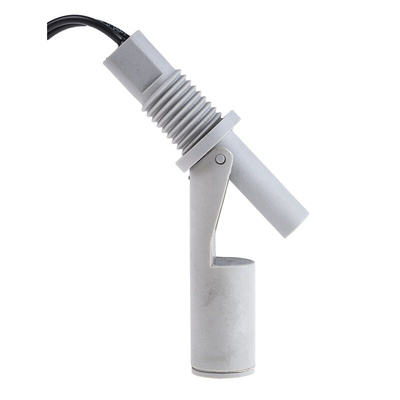

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

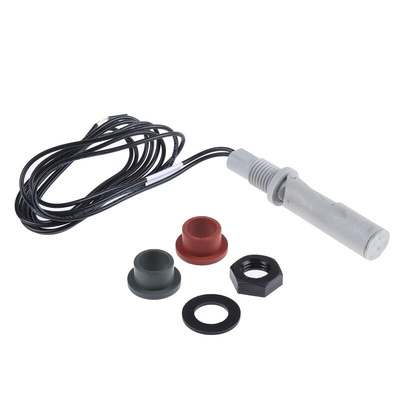

Sensata Cynergy3 Horizontal External Float Switch, NO/NC, 600mA - RSF70 Series - RSF76Y100RV

Need to monitor the level of liquid in a tank when you don't have access to the inside? This Sensata Cynergy3 float switch can be fitted from the outside of the tank and used to activate a circuit when the liquid reaches a certain level. The normally open/normally-closed (NO/NC) output lets you set up the switch to turn the circuit on or off when it's triggered. The switch is activated when the liquid in the tank rises to a set level or – by turning the body through 180˚ – when the liquid falls below it.

Features and Benefits

• Polyphenylene sulphide body offers high dimensional stability and temperature resistance
• Operating temperature range of -10°C to +105°C for use in challenging environments
• Viton gasket offers chemical resistance and remains strong under pressure

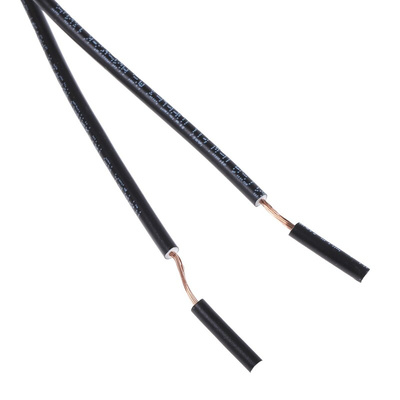

• 1m cable enables flexible installation

Where would I use a polyphenylene sulphide float switch?

Polyphenylene sulphide switches are suitable for use with most chemicals and oils. They're commonly found in vending machines, commercial dishwashers and evaporator units.

What kind of load is this type of switch suitable for?

This float switch is suitable for signal switching and use with transistorised input/low-power suppressed-coil miniature relays. It's not suitable for switching inductive or inrush loads such as those found in filament lamps.
