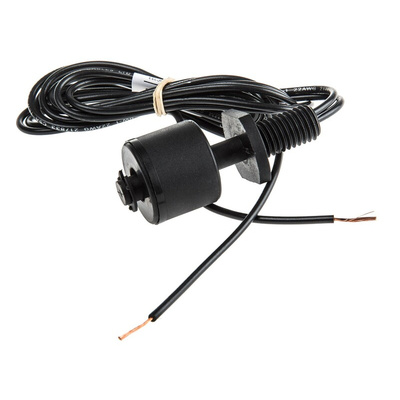

RSF53Y100RC, Sensata / Cynergy3 Sensata/Cynergy 3 RSF50 Series Vertical Nylon Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 RSF50 Series Float Switches

Cynergy3 RSF50 float switches are compact devices suitable for vending machines printing system and chemical dosing equipment, for example. RSF50 float switches are vertically mounted and feature a single switch.
There is a range of different material options available within the RSF50 series so you will be sure to find a suitable float switch for more commonly used liquids.
The direction of the switch can be reversed by firstly removing the float, inverting the switch and re-fitting it to the stem.

Within the series there are 5 ranges:
RSF53 (black) - Nylon
RSF54 (opaque) - Polypropylene (WRAS approved)
RSF56 (grey) - Polyphenylene Sulphide (PPS)
RSF57 (green) - Polyvinylidene Fluoride (PVDF)
RSF58 (white) - Polypropylene (UL approved)
Note - the different ranges feature other differences. Please refer to the Datasheet for more information on technical specifications.

What contact types are there?
The RSF50 float switches can be configured for N/O (Normally Open) or N/C (Normally Closed) operation.

What mounting thread does it have?
RSF50 float switches have either M12 or 1/8” NPT mounting thread. This is depicted by the last part of the part number. If it ends in “B” or “C”, it is an M12. If it ends in “1/8” it is 1/8” NPT.

Note

Part numbers ending in '1/8' have a 1/8"NPT mounting thread
Part numbers ending in 'C' have an M12 mounting thread

Warning

The cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Supplied with

epoxy sealed leadouts

Sensata Cynergy3 Vertical Float Switch, 1m Cable Length, 600mA - RSF50 Series - RSF53Y100RC

Choose this sensitive vertical float switch from Sensata Cynergy3 to monitor liquid levels in your tanks. It's mounted either at the top or bottom of the tank from the inside, so it's a good choice for when there's no side access to a tank. This switch is made of a nylon material that's lightweight and waterproof, so it can withstand long-term exposure to liquids. Its nitrile gasket offers excellent abrasion resistance to stand up to wear and tear. You'll find this type of switch used in modern dishwater systems and water closets.

Features & Benefits

• Low current consumption rate of 600mA (milliamperes) for energy efficiency
• Cable length of 1m for flexible connections
• Wide operating temperature range of -20°C to +75°C for use in harsh environments

What precautions should I take while using this float switch?

It's important not to submerge the cable entry points of this float switch to avoid electrical hazards. If you're mounting the switch horizontally, you must fit it through the wall of the tank so the cable is outside. For vertical installations, the switch's mounting thread and cable entry points must be above the liquid level.
