MS10B, Sensata / Cynergy3 Sensata/Cynergy 3 MS Series Cable Mount HDPE Float Switch, Float, 5m Cable, SPNC, 250V ac Max, 24V dc Max

Cynergy3 MS Series Float Switches

The Cynergy3 MS series of float switches are designed for large tanks, cisterns or reservoirs, and can be installed on submersible pumps. The MS float switches are capable of reaching 100m in depth.
MS float switches come with a 5m PVC cable.

What is it made from?
The flow switch case is made from blow-moulded HDPE (polyethylene). The unit is hermetically sealed. The cable is made from PVC and has a protective earth conductor. Part numbers ending with the letter “U” have PUR cables suitable for use in fuel oils.

What temperatures can it operate in?
All MS float switches operate from 0°C to +45°C / +32°F to 113°F.

What contact types are there?
The 5th digit of the part number represents the contact type:
A - Normally Open (N/O)
B - Nortmally Closed (N/C)
C - Changeover (C/O)

Approvals:
MS float switches have UL, VDE and CENELEC approvals. Part numbers ending with a "W" are WRAS approved cable coverings.

Versions Available:
(205-6910) MS10A
(338-9801) MS20A
(338-9794) MS10B
(869-7609) MS20C
(379-4001) MS10AW
(379-4017) MS10BW 

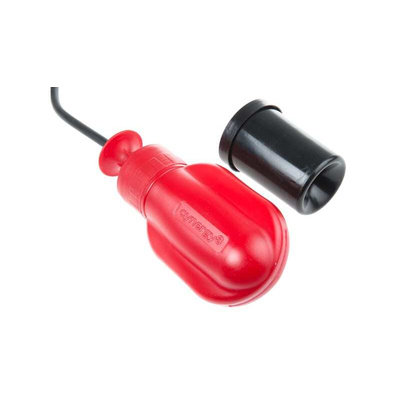

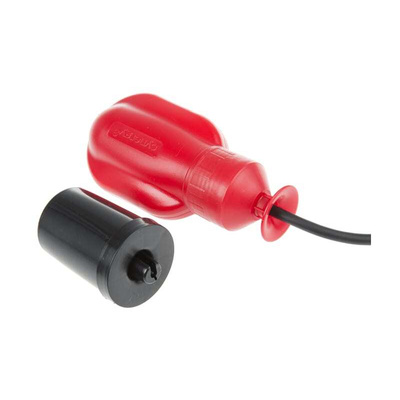

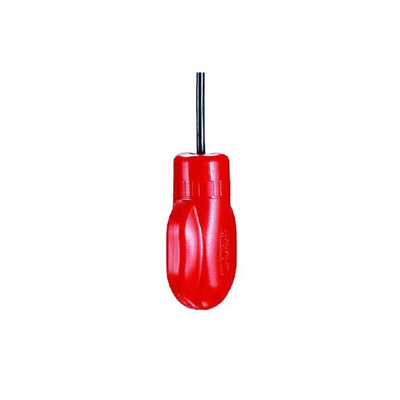

Sensata Cynergy3 Float Switch, NC, 5m - MS Series - MS10B

Need a float switch to install with your submersible pump? This unit from Sensata Cynergy3 is designed for use in large tanks, cisterns and reservoirs. It's rated to 10 bar so it can be submerged up to 100m deep. The switch's case is made from blow-moulded polyethylene (PE), with non-hygroscopic, closed-cell expanded polyurethane injected around the switch housing to hermetically seal the workings. The normally closed (NC) output turns the circuit off when the liquid rises above a set level. Thanks to direct power switching, this is an easy choice to operate.

Features and Benefits

• Moving stainless-steel ball actuator gives an electrical life of 200,000 operations
• Rated at 750V AC and 25W DC, which means it can handle high loads
• Operating temperature range of 0°C to +45°C, for versatile use in a wide range of environments
• Certified to Restriction of Hazardous Materials (RoHS) standards, so it won't release harmful chemicals if damaged

What type of fluids can the float switch be used in?

The switch can be used in both salt and fresh water as well as in food oils. It's not recommended for use in alcohols, fuel or machine oils.
