DTC410-02-MH, Tempatron On/Off Temperature Controller, 48 x 48mm, 90 → 260 V ac Supply Voltage, Контроллер

Tempatron Temperature Controller

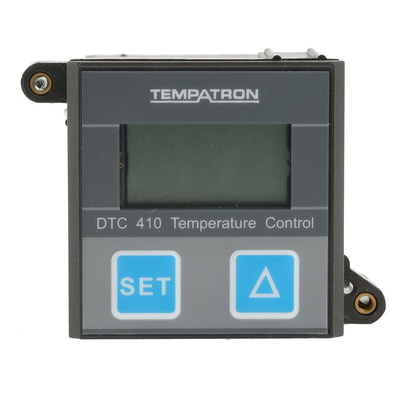

The Tempatron temperature controller has a supply voltage rating ranging from 90VAC to 260VAC. This controller has a length of 48mm and width of 48mm. It is designed for simple ON/OFF control of temperature. The digital controller operates from PT100 3 wire input sensors and offers simple 2-button programming, giving an easy setup procedure. The digital controller with LCD is housed in a compact DIN48 square enclosure that can be either panel mount or surface/DIN rail mount to a socket.
Warning:
This product contains a lithium battery that must not be cut open, disposed of in fire or otherwise exposed to temperatures outside the range -20°C to 65°C.

Features and Benefits

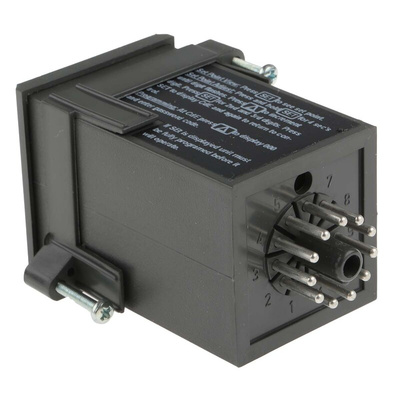

11-pin base
10 programmable alarm functions
Programmable offset (reset)
Direct or reverse action
Programmable Setpoint limits
Password protected
Reverse or direct action
Relay output
Matching timers available
Plug-in sockets also available

Certifications

EN50081-1
EN50082-1 for EMC
EN61010-1
IP40 rated

DTC410 Series On/Off Temperature Controllers

Quick User´s manual
