BEXS110E24DC, e2s BEXS110E Series Surface Mount Electronic Sounder, 24 V dc, 117dB at 1 m, IP66, DC, 23-Tone

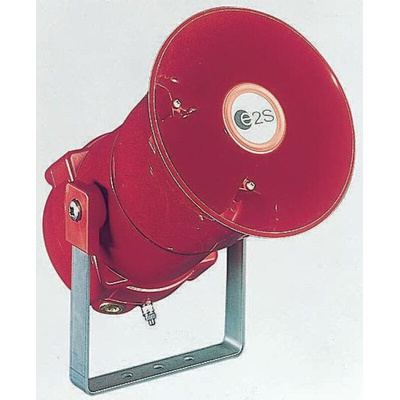

e2s Alarm Sounder

The e2s alarm sounder is a surface mount, 32-tone electronic alarm with a sound level output of 117dB(A) at a distance of up to 1m. The BEx range features enclosures manufactured from corrosion proof, marine grade, phosphate and powder coated, copper-free LM6 aluminium. It is enabled with high impact, re-entrant, fire-retardant ABS flare horns. All models have 2, M20 cable entries, large termination areas containing in, and out terminals. It works on a supply voltage of 24VDC. The sounder is available in red body colour.

Features and Benefits

Automatic synchronisation on multi-sounder system
Very large termination area
Die-cast LM6 aluminium alloy body with UL94V0 flame retardant ABS re-entrant horn
Stainless steel mounting brackets
Ratchet adjustable stainless steel ’U’ bracket
Programmable’ version available:
45 alarm tones
4 remotely selectable stages
Any tone can be assigned to any stage
User-configurable continuous frequency tone

Applications

Hazardous areas
Zone 1
Zone 2

Certifications

IP66 rated
IP67 rated
UKOOA/PFEER compliant
ATEX
IECEx
INMETRO
GOST-R
VdS
CE

Approvals

II 2G EEx de IIC T4
