BEXS110DFAC230AB1A1R, e2s BEXS110 Red 32 Tone Electronic Sounder ,230 V ac, 117dB at 1 Metre, IP67

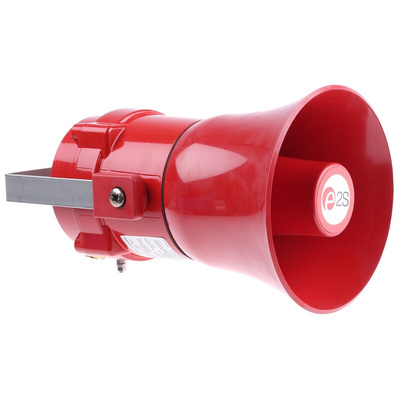

E2S BExS110 Explosion Proof Alarm Horn Sounder

E2S BExS110 series explosion proof very high output horn alarm sounder with output up to 117dB (A) at 1m, suitable for Zone 1, 2, 21 & 22 applications. These devices feature 32 alarm tones options and 3 selectable alarm stages/channels. The BEx explosion proof range is constructed from corrosion proof, marine grade copper free LM6 aluminium with chromate and powder coat finish. The range features stainless steel, ratchet adjustable mounting brackets and has been ingress protection tested to IP66/67.

Features and Benefits

• Marine grade, corrosion proof, LM6 aluminium enclosure


• Automatic synchronisation on multi-sounder system


• Ratchet adjustable stainless steel ’U’ bracket for 360° positioning


• Stainless steel fixings


• Ingress protection IP66/67


• Dual M20 cable entries


• Reverse polarity diode fitted


• Operating temperature is between -50°C and +75°C

Approvals

• IECEx KEM 10.0003X


• ATEX KEMA 99ATEX6312X


• TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109


• VdS certificate: G206011


• CPD certificate: 0786-CPD-20225


• SIL 1 compliant to IEC 61508 (2010) – standard


• INMETRO certificate: 10-IEx-0009


• Marine Equipment Directive (MED) Certificate: MEDB00001BU


• CCOE PESO

E2S 1-22-040 Sounder

BExS110 Datasheet

BExS110 Instruction Manual
