Double Row - Angular Contact - Open Type
Angular Contact Bearings are ideally suited to applications requiring high rotating speeds, combined radial and axial loads and a high degree of stiffness and running accuracy.
High Performance - They have a high load carrying capacity and thus allow smaller bearings to be used while still providing long service life
Quieter and Cooler Running - With their optimal inner geometry, they run quieter and cooler and can tolerate longer maintenance intervals
Precise Shaft Guidance - Due to precision manufacturing processes, almost all SKF angular contacts exceed standard tolerances, to provide a smoother, truer running shaft with less heat and fewer vibrations
High Temperature Capability - They can withstand relatively high operating temperatures without significant loss of dimensional stability

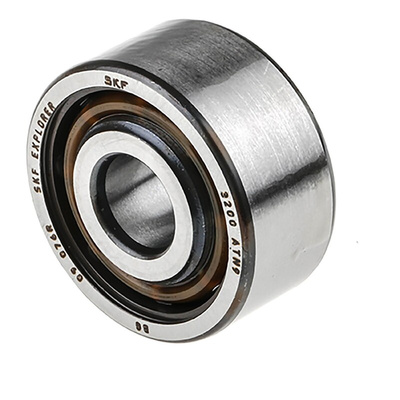

SKF Plain Angular Contact Ball Bearing, 10 mm ID - 3200 ATN9
This double-row angular contact ball bearing from SKF is a convenient solution for supporting radial and axial loads in both directions. High-quality balls and an advanced finish on the raceway surface enhance lubricant conditions while reducing noise and vibration. Contact sealing prevents dust from getting in, making the bearing ideal for agricultural use. This product has been strictly tested for quality and complies with both British and EU electrostatic discharge standards.
• Angular contact ball bearing
• Open-end type
• Parallel bore type
• Inside diameter of 10 mm
• Outside diameter of 30 mm
• Plain race with width of 14 mm
• 2 rows
• Manufactured from steel
• Operating temperatures from -40 °C to +100 °C
• Fibreglass reinforced nylon 66 casing
• Static load rating of 4.3 kN
• Dynamic load rating of 7.61 kN
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
Application Information
• Manufacturing pumps and compressors
• Conveying and packaging equipment
• Elevator manufacture
• Agricultural machinery
When should I use double-row angular contact ball bearings?
Use these bearings where two single-row ball bearings are used in a back-to-back 'O' arrangement for sustaining axial loads in both directions.
Why should I use sealed ball bearings?
Sealed ball bearings protect from potentially damaging dust, damp or contamination. Sealing also minimises noise and vibration.
