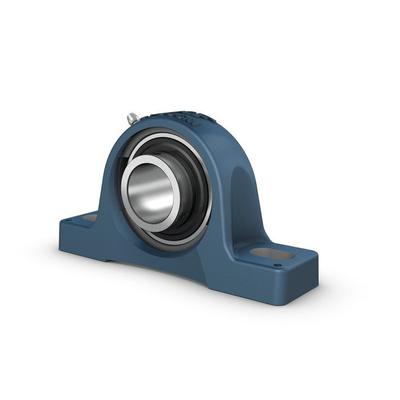

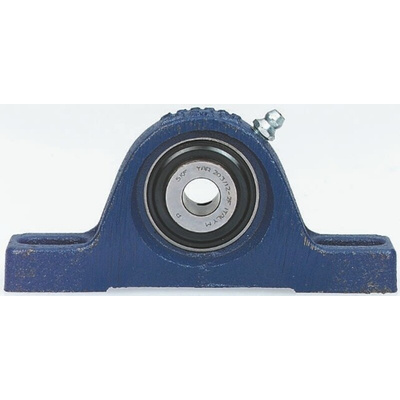

SKF SY 20 TF Plummer Block House -, 20mm ID

SKF Plummer Block House, 20 mm ID - SY 20 TF

Use this plummer block bearing unit from SKF to attach a rotating shaft to a surface in a parallel orientation. The two slotted block holes make for simple installation and create a secure connection even if there's some initial misalignment. The plummer block house is made from high-grade cast iron that resists corrosion, so it's long-lasting. This makes the bearing unit ideal for heavy-duty applications such as industrial machinery, construction tools and mining equipment.

• Centre height of 33.3 mm
• Depth of 32 mm
• Inside diameter of 20 mm
• Length of 127 mm
• Mount hole centre-to-centre length of 97 mm
• Mount hole size of 10 mm
• Overall height of 65 mm

Application Information

• Manufacturing
• Mining
• Construction

How do I maintain this unit?

The plummer block bearing unit is provided with grease nipples so you can accurately apply extra lubricant as needed to keep the bearings running smoothly.

Is this product easy to install?

The slotted block holes make it easy to bolt this plummer block housing onto a support surface. Once the rotating shaft is properly aligned, you should secure the bearing housing by fully tightening the bolts.

Dimension drawing data sheet

Datasheet - SY 20 TF
