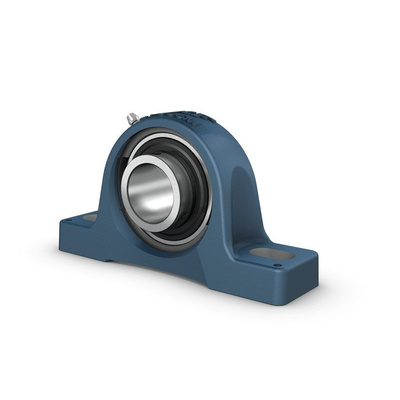

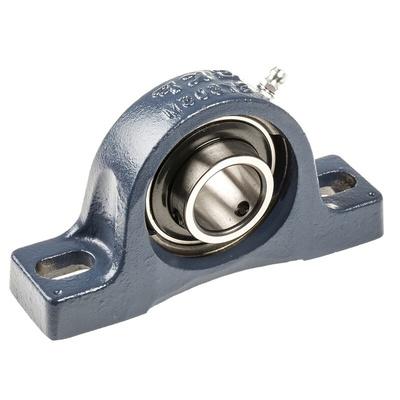

SKF SY 25 TF Plummer Block House -, 25mm ID, Подшипник

Cast Iron Pedestal Bearing Unit

Available in metric or imperial bore sizes.

Slotted bolt holes
Lubrication via grease nipple

SKF Plummer Block House, 25 mm ID - SY 25 TF

Do you need maximum protection for bearings in challenging environments? This SKF plummer block house offers a handy solution. Its strong cast iron protective casing stands up to high-speed applications and heavy shock loads while maintaining effective damping and thermal conductivity. A superior sealing system protects bearings from water and contaminants while also retaining the unit's lubrication, cutting down on the need for re-greasing. This pedestal mount housing has a 25 mm inside diameter and is supplied ready to install with slotted holes to bolt it securely into place.

•Available in metric or imperial bore sizes
•Reduced noise and vibration
•Ready to use and maintenance-free
•Centre height of 36.5 mm
•Depth of 36 mm
•Length of 130 mm
•Centre-to-centre mount hole of 102 mm
•Mount hole size of 10 mm
•Overall height of 70.5 mm

Application Information

•Packaging equipment
•Conveyor systems
•Agricultural equipment
•Construction plants

Datasheet

Datasheet - SY 25 TF
