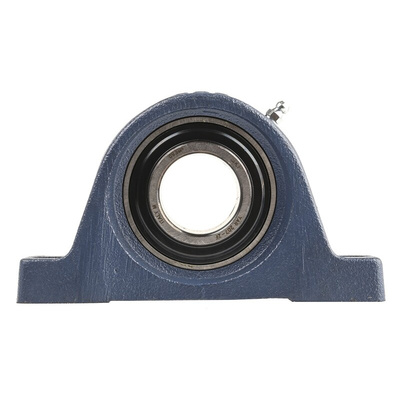

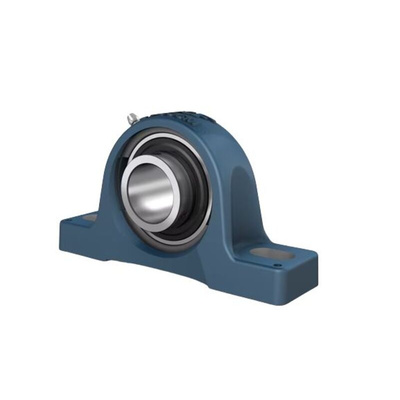

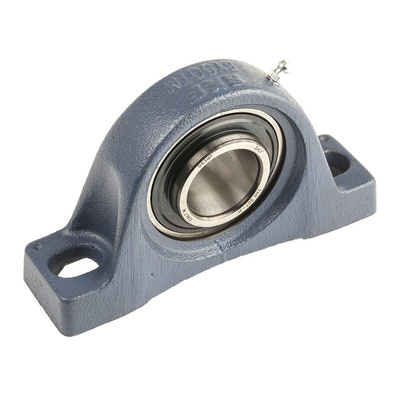

SKF SY 35 TF Plummer Block House -, 35mm ID

SKF Plummer Block House, 35mm ID, 45mm Overall Width, 5300r/min Limiting Speed - SY 35 TF

Choose this plummer block house from SKF to manage your loads and support rotational movement with stability. Its two pre-made bolt holes spaced 126mm apart make it easy to be on point when securing it to a suitable surface. The unit is a hardy option that cuts you slack during installation, as it tilts slightly to handle static misalignment of up to 2°. Shaft mounting is made effortless by a set screw mechanism that secures the inner ring to the assembly, so there's no need for specialist equipment. Tipping the scales at 1.5kg, this component won't weigh down your infrastructure.

Features & Benefits

• Ideal for processes that need rapid rotation, thanks to a limiting speed of 5300r/min
• Hardy cast-iron construction stands up to challenging environments
• 25.5kN dynamic load and 15.3kN static load ratings for use with demanding applications
• Relubrication hole so you can easily top up the grease

Applications

• Metal fabrication
• Textile industry
• Packaging equipment

Does this plummer block house have protection against industrial contaminants?

Yes, it has built-in seals and flingers on both sides to block out and prevent a build-up of grime.

Dimension drawing data sheet

Datasheet - SY 35 TF

Catalogue - Y-Bearings and Y-Bearing Units
