SKF SY 40 TF Plummer Block House -, 40mm ID

Cast Iron Pedestal Bearing Unit

Available in metric or imperial bore sizes.

Slotted bolt holes
Lubrication via grease nipple

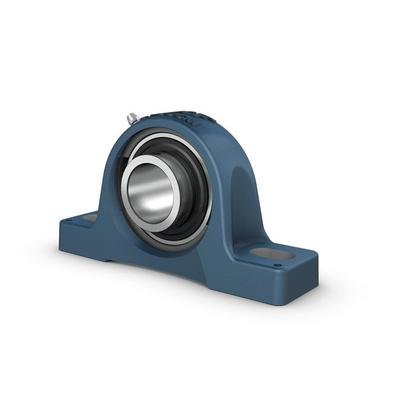

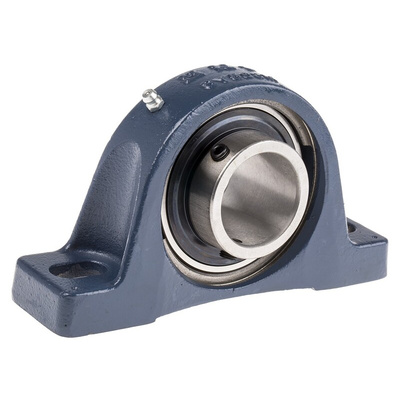

SKF Plummer Block House, 40 mm ID - SY 40 TF

This SKF plummer block house bearing unit is ideal for coping with misalignment in rotating shafts. It's made from cast iron, which means it can work reliably at extreme temperatures. The slotted bolt holes ensure housing stays firmly secured in position, allowing it to withstand shock and support heavy loads. The bearings can be re-lubricated through a grease fitting on the housing, making the unit suitable for environments with high levels of dust and particle contamination.

• Inside diameter of 40 mm
• Made from cast iron
• Centre height of 49.2 mm
• Depth of 48 mm
• Length of 175 mm
• Height of 99 mm
• Mount hole centre-to-centre length of 135.5 mm
• Mount hole size of 12 mm

Application Information

• Material handling
• Conveyor systems
• Packaging equipment

What is the operating temperature range of this bearing unit?

This SKF bearing unit is suited to extreme temperature conditions. The operating temperature range is from -150°C to +350°C

What is the load rating for this bearing unit?

The basic static load rating (C₀) is 19 kN (kilonewtons). The basic dynamic load rating (C₀) is 30.7 kN.
