SKF 2 Hole Flange Bearing Unit, FYTB 20 TF, 20mm ID, Подшипниковый узел

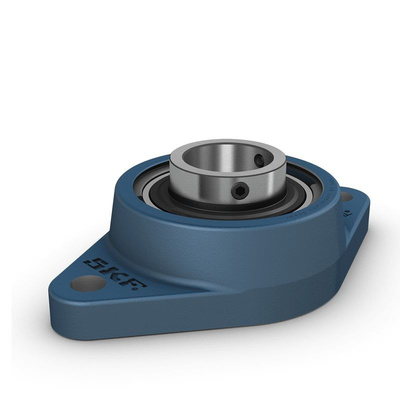

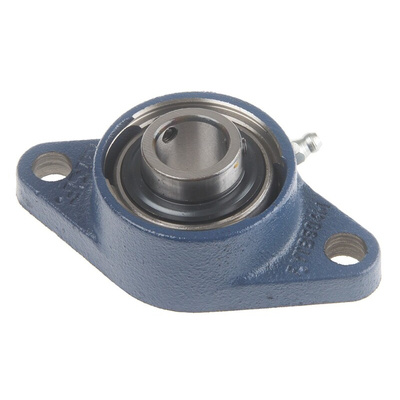

SKF 2-Hole Flange Bearing Unit, 20 mm ID - FYTB 20 TF

Use this cast-iron bearing unit from SKF to attach a rotating shaft to a surface firmly and reliably. The flanged wings provide strong perpendicular support and also allow for smooth rotary motion. This bearing unit is simple to install, with two mounting holes that can accommodate some moderate initial misalignment. A flanged bearing like this is ideal for use in industrial machinery, particularly in construction, agriculture and textile manufacture.

• Durable, corrosion-resistant cast iron
• Nitrile/fabric seal preserves bearing lubrication
• Depth of 37.3 mm
• Inner diameter of 20 mm
• Length of 112 mm
• Centre-to-centre distance of 90 mm
• Mount hole size of 11.5 mm
• Width of 60.5 mm

Application Information

• Industrial manufacturing
• Food processing
• Packaging and labelling

Is this bearing unit easy to maintain?

The flange bearing is provided with its own grease nipple, which makes it easy to lubricate and ensures reliable use over time.

What are the benefits of the flanged shape?

Besides making it particularly easy to install, the bearing unit's wings mean it's especially effective at supporting intermediate axial loads.

Dimension drawing data sheet
