SKF 2 Hole Flange Bearing Unit, FYTB 30 TF, 30mm ID, Подшипниковый узел

Self-Lube Bearing Units

Sealed bearing units to suit metric or imperial shaft
Made from cast iron to BS1452
Spherical bearing insert accommodates initial misalignment

Nitrile/fabric seals
C3 internal radial clearance

Supplied with

grease nipples and full fitting instructions

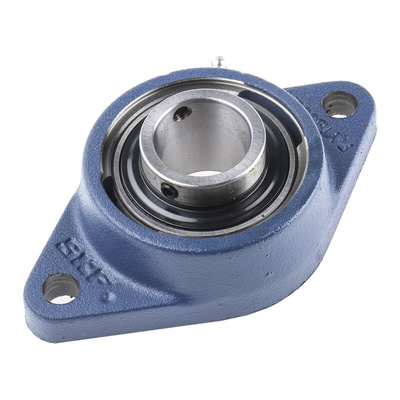

SKF 2-hole Flange Bearing Unit, 30 mm ID - FYTB 30 TF

This cast-iron bearing unit is a highly effective way to attach a rotating shaft to a surface. It provides strong perpendicular support and allows for smooth rotary motion. The winged shape makes this type of bearing particularly suited to supporting intermediate axial loads. The spherical bearing insert accommodates moderate initial misalignment, reducing your maintenance time. The nitrile fabric seal protects the bearing unit from water, dust or any other material that could cause damage.

• Inside diameter of 30 mm
• Length of 141.5 mm
• Width of 83 mm
• Depth of 42.2 mm
• Mount hole size of 11.5 mm
• Mount hole centre-to-centre distance of 116 mm
• Cast iron

Application Information

• Food processing
• Distribution
• Textile manufacture
• Baggage systems
• Medical equipment

Is this bearing unit easy to install?

This bearing unit attaches easily to your equipment or machinery via the two boreholes in the winged flanges, which can be secured with standard screws or bolts. The unit is even designed to align itself and there's a grease nipple included so you can add extra lubrication if necessary.

Two-Bolt Flange Bearings - SKF

Dimension drawing data sheet

Catalogue - FYTB 30 TF
