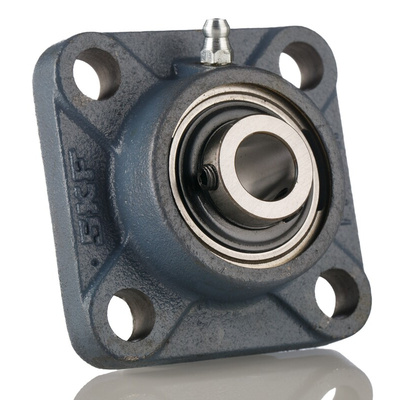

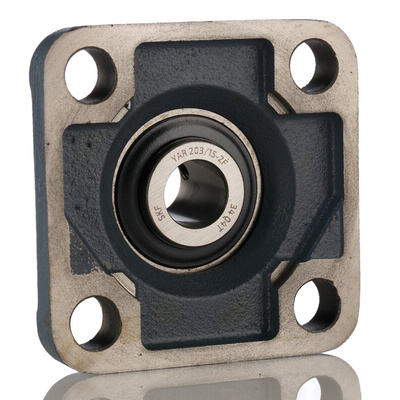

SKF 4 Hole Flange Bearing Unit, FY 15 TF, 15mm ID, Подшипниковый узел

SKF 4-Hole Flange Bearing Unit, 15mm ID, 76mm Length - FY 15 TF

Keep your rotary machinery steady and supported with this flange bearing unit from SKF. When attached to the rotary shaft in your mechanism, it disperses energy and motion across connected mechanical components such as turbines, gears and wheels to ensure efficient operation. The four predrilled mounting holes allow you to screw it tightly in place using set screws, making installation quick and simple. As the unit's cast iron material is highly resistant to corrosion, wear and heat, you can rely on it in harsh industrial environments.

• Nitrile rubber seals with flingers to keep contaminants out of the bearing for improved performance
• Dynamic load rating of 9.56kN and static load rating of 4.75kN for compatibility with heavy machinery
• Minimal system strain thanks to light weight of 0.37kg
• Threaded hole allows for re-greasing for ease of maintenance

Applications

• Lathe machines
• Material handling
• Medical processing
• Gearboxes

Is this flange bearing unit suitable for use with high-speed machinery?

Yes, this flange bearing unit has a limiting speed of 9500rpm (rotations per minute), making it a good choice for use in high-speed applications.

Four-Bolt Flange Bearings - SKF

Dimension drawing data sheet

Specification Sheet - FY 15 TF
