SKF 4 Hole Flange Bearing Unit, FY 30 TF, 30mm ID, Подшипниковый узел

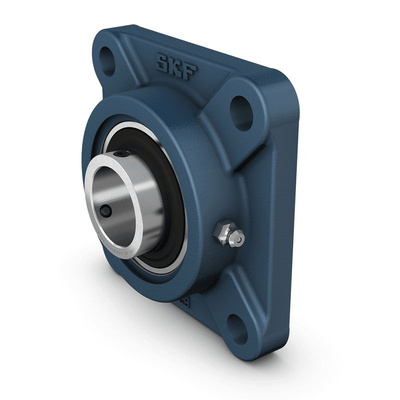

SKF 4-Hole Flange Bearing Unit, 30 mm ID - FY 30 TF

This flange bearing unit from SKF lets you attach a rotating shaft to a surface simply and securely. It's made from BS (British Standards) 1452 cast iron, a flake graphite material appreciated for its hardness and resistance to corrosion. The wing shape of this bearing provides strong perpendicular support and makes it particularly effective when supporting intermediate axial loads. The four mounting holes ensure a firm connection to the surface, and the housing comes with a spherical bearing insert to accommodate some initial misalignment.

• Depth of 42.2 mm
• Inner diameter of 30 mm
• Length of 108 mm
• Mount hole, centre-to-centre distance of 82.5 mm
• Mount hole size of 11.5 mm
• Width of 108 mm

Application Information

• Manufacturing
• Agricultural and horticultural sectors
• Food processing

Is this bearing easy to maintain?

As well as being made from high-grade cast iron that will resist wear for a long time, this bearing unit comes with a grease nipple, allowing you to apply lubricant accurately. This will maintain a high standard of performance and increase the product's lifespan.

Dimension drawing data sheet

Catalogue - FY
