SKF 4 Hole Flange Bearing Unit, FY 35 TF, 35mm ID, Подшипниковый узел

SKF Cast-Iron Flange Bearing Unit, 4 Holes, 35mm ID - FY 35 TF

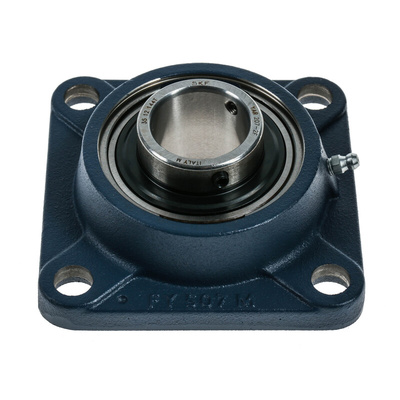

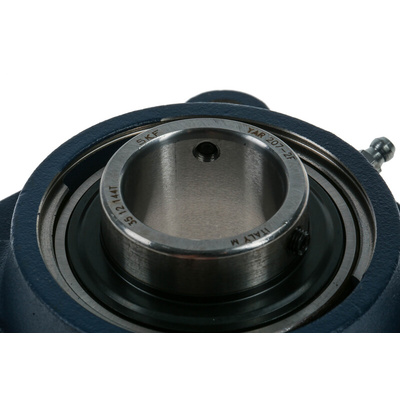

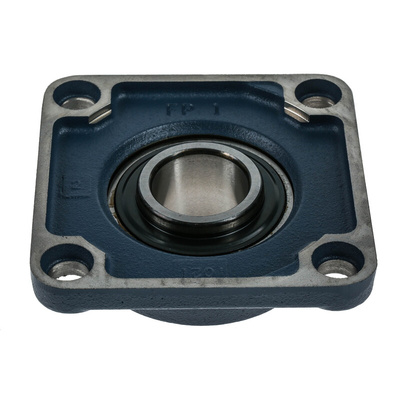

This SKF flange bearing unit is made up of a spherical bearing insert held in a square casing. Thanks to the four mounting holes, it's simple to attach to the body of a machine or on a wall. The flange design holds the bearing insert in place to prevent axial movement for greater stability. It's sealed using nitrile and fabric seals for resistance to dust, oil and moisture. Keeping contaminants out and lubricants in ensures high levels of efficiency and minimal maintenance.

• Cast-iron housing material has excellent impact resistance for long-lasting performance
• Limiting speed of 5300rpm (rotations per minute) for use in high-speed applications
• Additional flingers provide added protection against dust and moisture by pitching contaminants away

Applications

• Material handling applications
• Power transmission
• Agricultural equipment

What hardware do I need to mount this unit?

This unit is simple to mount. Insert it on a machine shaft and tighten it in place with M6 x 0.75 set screws. You can also use 12mm attachment bolts to lock it in place. The recommended tightening torque is 4Nm.

Four-Bolt Flange Bearings - SKF

Dimension drawing data sheet

Datasheet - FY 35 TF

Manual - FY 35 TF

Specification Sheet - FY 35 TF
