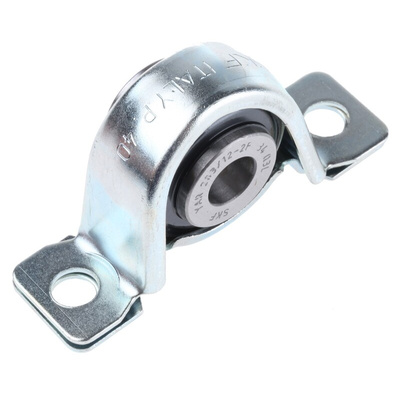

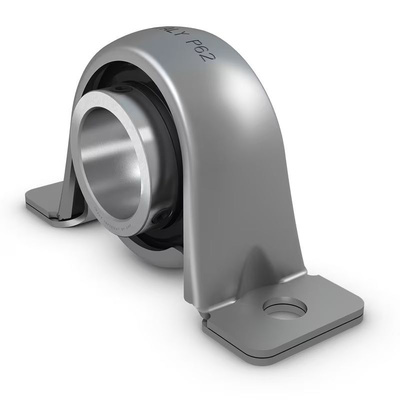

SKF P 12 TF Plummer Block House -, 12mm ID

SKF Plummer Block House, 9.6mm Attachment Bolt Hole Diameter, 12mm ID, 18mm Top Width, 26mm Base Width - P 12 TF

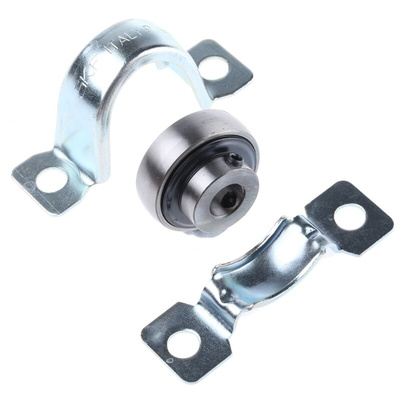

Looking for an all-in-one bearing system that won't let you down? Count on this plummer block house from SKF. It comes with the housing and insert bearing all ready to go, so you can get your equipment up and running in a jiffy. Once installed, this assembly takes on dynamic loads up to 9.56kN and static loads up to 4.75kN to suit medium-duty setups. You can rest assured that the 9,500r/min limiting speed is just the job for fast-moving machinery.

Features & Benefits

• Features concentric locking options for low-vibration operation
• Label etched into the bearing makes it easy to identify the unit's spec in crowded setups
• Zinc-coated housing resists corrosion to deliver long-lasting performance
• Lubricated and sealed to keep contaminants out and cut down on maintenance

Applications

• Manufacturing industry
• Construction sites
• Food processing plants
• Agricultural machinery

How do I attach the bearing to the shaft?

You can secure the bearing onto the shaft using the set-screw lock. This tightens the inner ring of the bearing so it holds fast to the rod.

Dimension drawing data sheet

Catalogue - Y-Bearings and Y-Bearing Units
